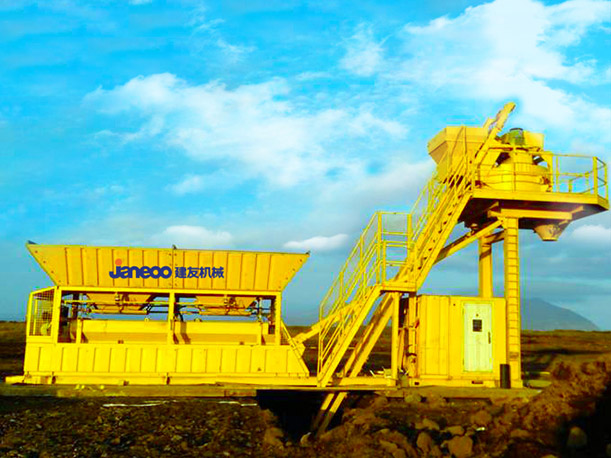

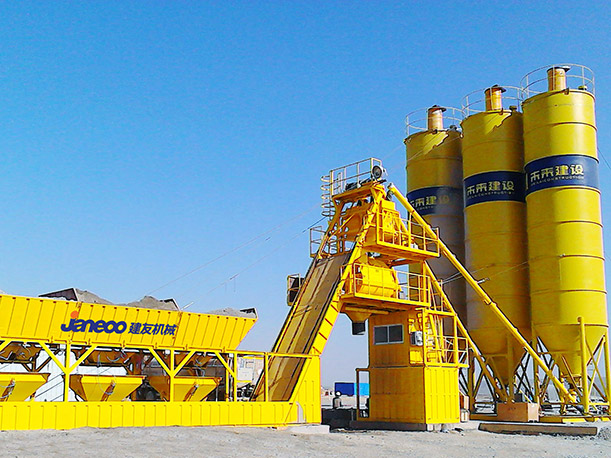

Shantui Janeoo FOUNDATION FREE CONCRETE BATCHING PLANT

22-2x37kW

Driving power
500~3000L

Discharging capacity

View Complete Details

SEND EMAIL

Complete Details

GET LATEST PRICE

QUICK INQUIRY

Overview
Specifications

Overview

1. Foundation free structure, the equipment can be installed for production after the work site is leveled and hardened. Not only reduce the foundation construction costs, but also shorten the installation cycle.
2.The modular design of the product makes it convenient and quick to disassemble and transport.
3. Overall compact structure, less land occupation.

Foundation free structure, the equipment can be installed for production after the work site is leveled and hardened. Not only reduce the foundation construction costs, but also shorten the installation cycle

Specifications

Mode			SjHZN025F	SjHZN040F	SjHZN050F	SjHZN075F	SjHZS050F	SjHZS075F	SjHZS100F	SjHZS150F
Theoretical productivity m³/h			25	40	50	75	50	75	100	150
Mixer	Mode		JN500	JN750	JN1000	JN1500	JS1000	JS1500	JS2000	JS3000
	Driving power（Kw）		22	30	45	55	2X18.5	2X30	2X37	2X55
	Discharging capacity（L）		500	750	1000	1500	1000	1500	2000	3000
	Max. aggregate size Gravle/ Pebble mm）		≤60/80	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80	≤60/80
Batching bin		Volume m³	4X4	4X4	3X8	3X8	3X8	3X8	4X20	4X20
Hoist motor power（kW）			5.5	7.5	18.5	22	18.5	22	30	45
Weighing range and measurement accuracy		Aggregate kg	1500±2%	1500±2%	2500±2%	3000±2%	2500±2%	3000±2%	4X（2000±2%）	4X（3000±2%）
		Cement kg	300±1%	500±1%	500±1%	800±1%	500±1%	800±1%	1000±1%	1500±1%
		Fly ash kg	---------	--------	150±1%	200±1%	150±1%	200±1%	400±1%	600±1%
		kg	150±1%	200±1%	200±1%	300±1%	200±1%	300±1%	400±1%	600±1%
		Additive kg	20±1%	20±1%	20±1%	30±1%	20±1%	30±1%	40±1%	60±1%
Discharging height m			4.5	4.5	4.5	4.5	4.5	4.5	4.2	4.2
Total power（Kw）			40	50	130	155	122	150	216
