Shantui Janeoo WATER PLATFORM CONCRETE BATCHING PLANT

2X 18.5-2X55

Driving power
1000-3000

Discharging capacity

View Complete Details

SEND EMAIL

Complete Details

GET LATEST PRICE

QUICK INQUIRY

Overview
Specifications

Overview

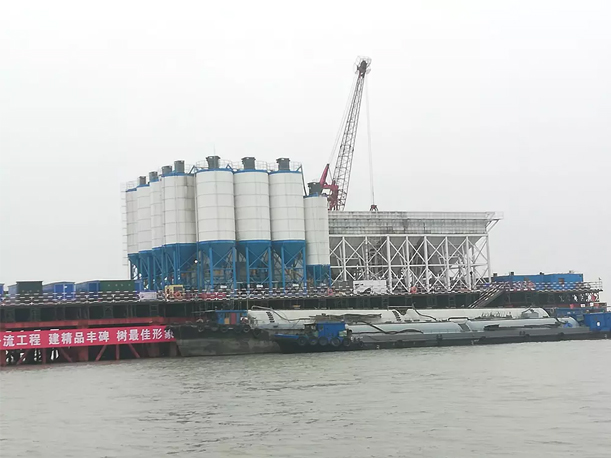

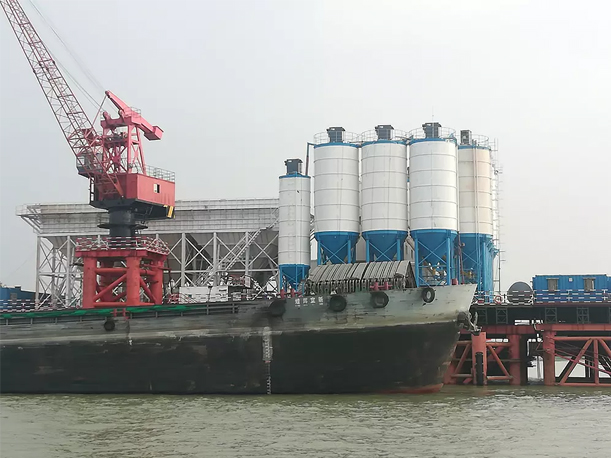

1.It's suitable for production of water construction, and the special structure meets the requirements of the water enviroment.
2.Compact structure can reduce the construction cost of the platform.
3.The equipment has high safety and can adapt to the platform foundation settlement and the influence of typhoon.
4.Equipped with large volume aggregate bins, one-time feeding can meet the production of 500m3 of concrete(can be customized according to requirements), equipped with movable cover to meet the normal construction in rain and snow.

It's suitable for production of water construction, and the special structure meets the requirements of the water enviroment.

Specifications

Mode		HZS60ME	HZS90ME	HZS120ME	HZS180ME
Theoretical productivity m³/h		60	90	120	180
Mixer	Mode	JS1000	JS1500	JS2000	JS3000
	Driving power（Kw）	2X 18.5	2X 30	2X37	2X55
	Discharging capacity（L）	1000	1500	2000	3000
	Max. aggregate size（Gravel/Pebblemm）	≤60/80	≤60/80	≤60/80	≤60/80
Batching bin	Stone bin volume m³	2X150	2X150	2X300	2X300
	Sand bin volume m³	200	200	400	400
	Powder silo m³	100	100	200	200
Belt conveyor capacity t/h		200	300	400	600
Weighing range and measurement accuracy	Aggregate kg	3X（1000±2%）	3X（1500±2%）	3X（2000±2%）	3X（3000±2%）
	Cement kg	500±1%	800±1%	1000±1%	1500±1%
	Flyash kg	150±1%	200±1%	400±1%	600±1%
	Water kg	200±1%	300±1%	400±1%	600±1%
	Additive kg	20±1%	30±1%	40±1%	60±1%
Discharging height m		4.2	4.2	4.2	4.2
Total power kW		100	150	200	250
