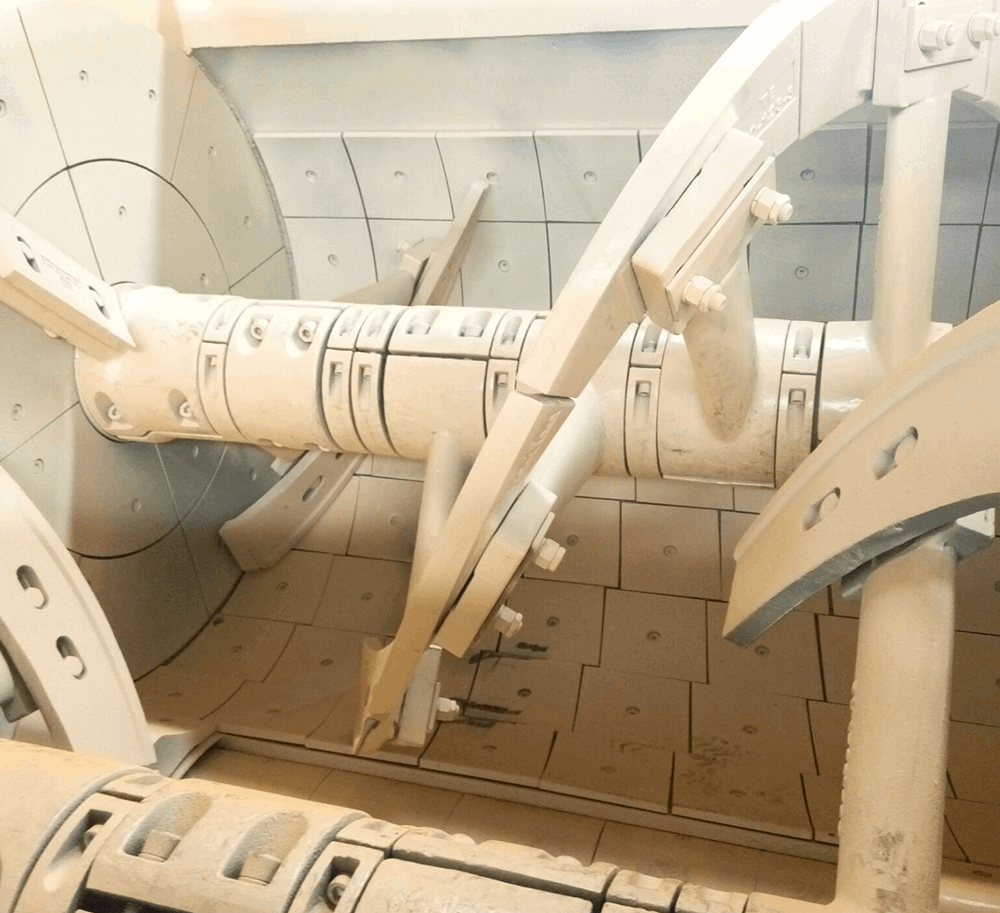

1. High efficiency: spiral belt blades, short stirring time, even
mixing, improve stirring efficiency by more than 25%, save more than 10%
electricity
2. High reliability: main components: reducers, bearings, seals, V-belts are imported, with long service life and low failure;
3.
Strong versatility: the transmission mechanism, shaft end mechanism,
unloading mechanism, etc. are common with KTSA mixers, which is more
convenient for maintenance.
1. High efficiency: spiral belt blades, short stirring time, even mixing, improve stirring efficiency by more than 25%, save more than 10% electricity
2. High reliability: main components: reducers, bearings, seals, V-belts are imported, with long service life and low failure;
3. Strong versatility: the transmission mechanism, shaft end mechanism, unloading mechanism, etc. are common with KTSA mixers, which is more convenient for maintenance.
| Model number | KTSL3000/2000 | KTSL3750/2500 | KTSL4500/3000 | KTSL5300/3500 | KTSL6000/4000 | KTSL6750/4500 |
| Feeding capacity（L） | 3000 | 3750 | 4500 | 5300 | 6000 | 6750 |
| Output capacity（L） | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 |
| Motor power（mm） | 80/100 | 80/100 | 80/120 | 80/120 | 80/150 | 80/150 |
| Weight（t） | 7.5 | 8.5 | 9.2 | 9.6 | 12.2 | 12.5 |
| Motor Power(KW) | 37x2 | 45x2 | 55x2 | 55x2 | 75x2 | 75x2 |
| Maximum particle size(mm) | 3460X2320X2140 | 3670X2320X2140 | 3880X2600X2200 | 4100X2600X2200 | 4670X2600X2200 | 4890X2600X2200 |
| Stirring time(s) | ≤25 | ≤25 | ≤25 | ≤25 | ≤25 | ≤25 |
