SDMIX MDA10
  • SDMIX MDA10
  • SDMIX MDA10
  • SDMIX MDA10
Concrete mixing equipment

SDMIX MDA10

  • 3000L
    Nometric capacity
  • 2000L
    Feeding capacity
  • 7.5t
    Preparedness quality
View Complete Details
  • Overview
  • Specifications
Overview

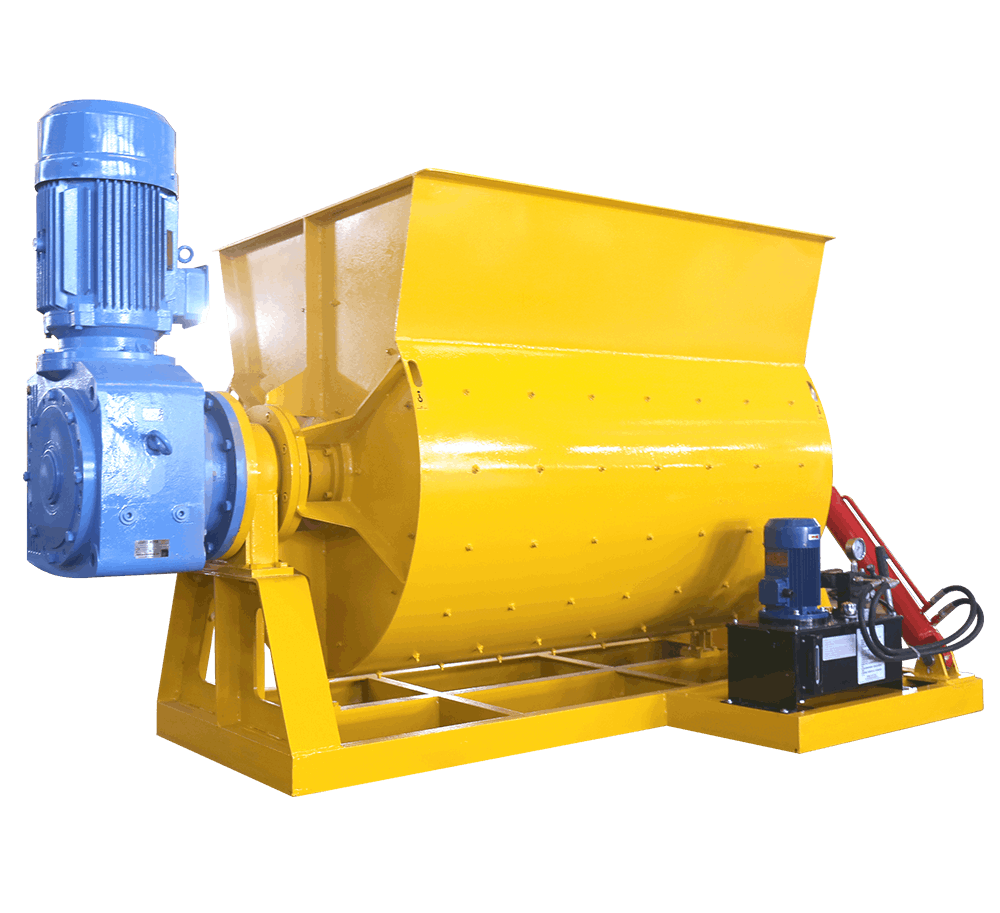

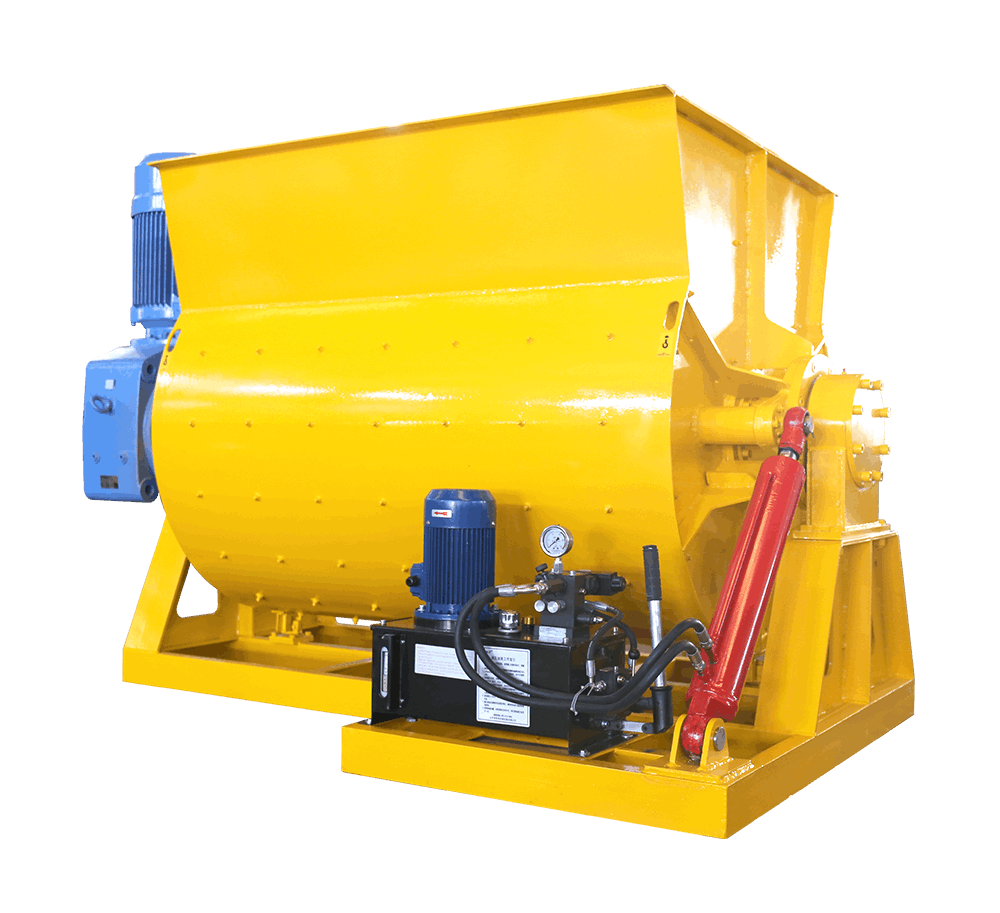

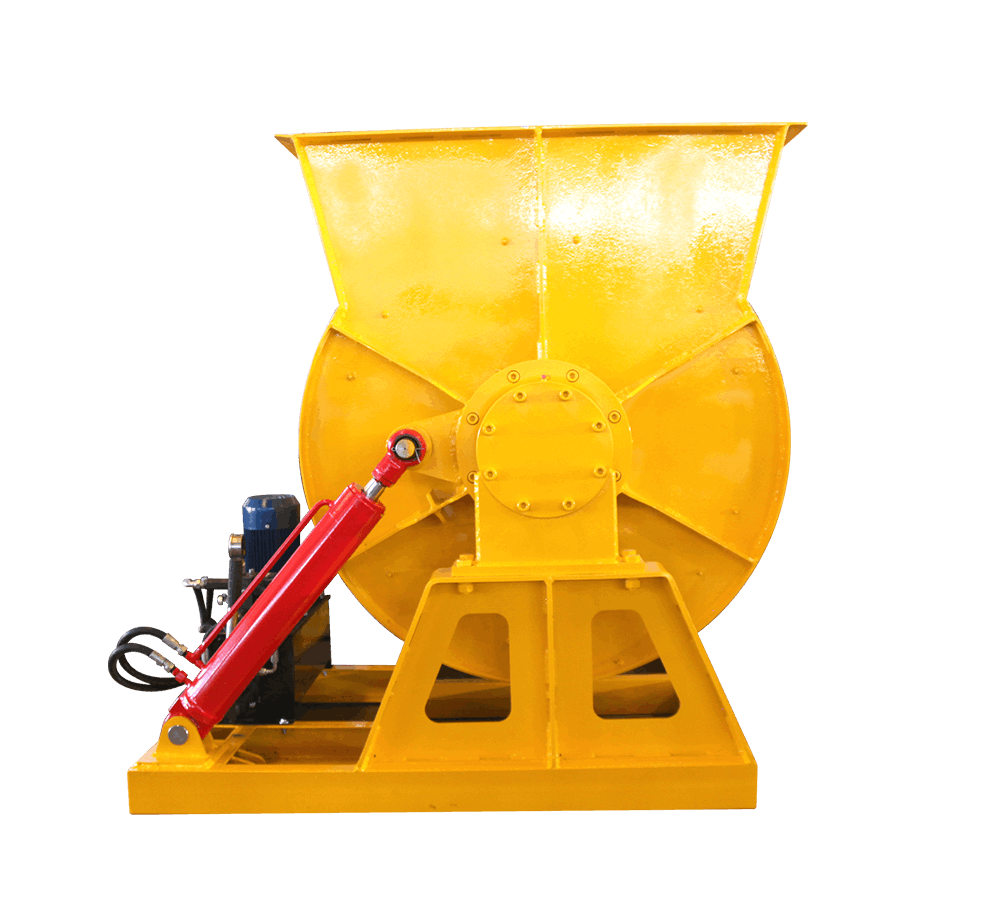

Single horizontal shaft mixer is a special mixer developed for light material mixing. It can be used for material mixing in product production lines such as glass magnesium board, fireproof board, magnesite board, cement board, foaming and lightweight concrete board.

1. High efficiency: adopt a twin-screw belt mixing device to effectively improve the mixing efficiency and uniformity;
2. Easy unloading: use tipping and unloading method, the tipping angle can reach 100 degrees to avoid leakage and residue during unloading;
3. Multi-working conditions: adopt a single horizontal shaft design, stirring without dead angles, especially suitable for mixing and stirring light materials;

Specifications
model numberMDA10
Nometric capacity(L)3000
Feeding capacity(L)2000
Maximum particle size(mm)80/100
Preparedness quality(t)7.5
Main motor power(KW)37x2
Dimensions(mm)3460X2320X2140
