LGMG HA735(HA735)
  • LGMG HA735(HA735)
  • LGMG HA735(HA735)
  • LGMG HA735(HA735)
Telehandler

LGMG HA735(HA735)

  • 6.9m(22'8'')
    Work Height Max.
  • 3500kg(7716lbs)
    Platform Capacity
  • 2.41m(7'11'')
    Machine Width
View Complete Details
  • Overview
  • Specifications
Overview

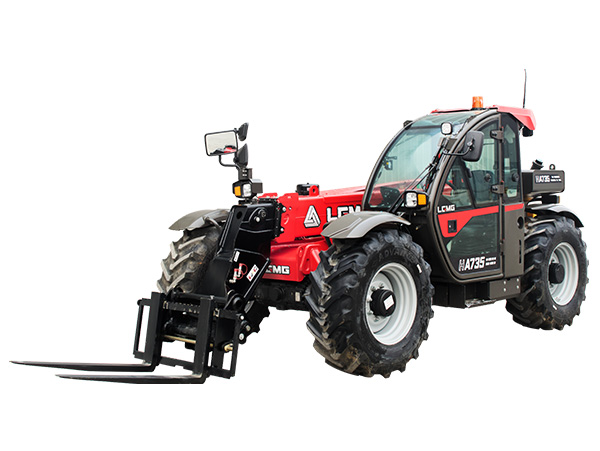

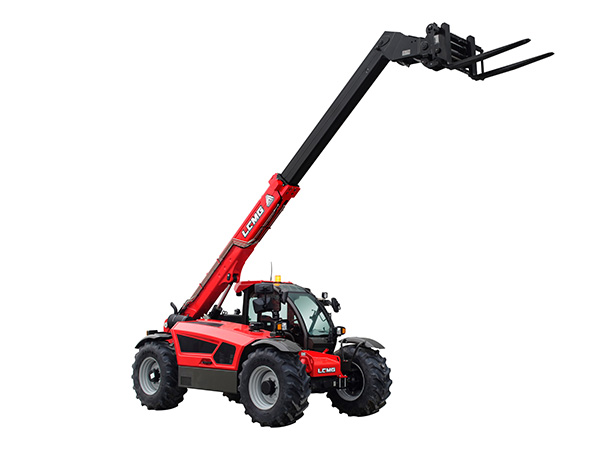

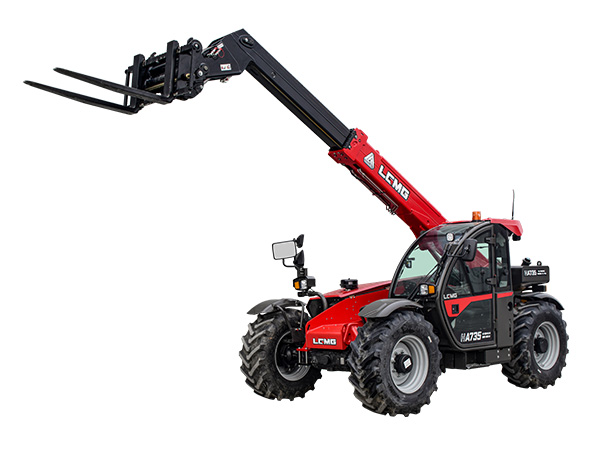

The LGMG HA735 is a telehandler with a capacity of 3500kg and a maximum lifting height of 6.9 meters.



It incorporates hydraulic convertor, delivering robust power and exceptional transmission efficiency. With three distinct steering modes, it can be tailored to suit the requirements of operations in confined spaces.



The HA735 prioritizes driver safety through the utilization of a FOPS&ROPS cab. Furthermore, it offers extensive adaptability, accommodating a wide range of attachments for tasks such as forklifting, lifting, loading, grabbing, clamping, manned operations, and more. This versatility transforms it into a true multi-purpose machine.


Specifications
ModelsHA735
MeasurementsMetricImperial
A-Max. Lifting Height6.9 m22'8''
Max. Outreach3.9 m12'10"
B-Overall Lenth4.91 m16'1''
C-Overall Width 2.41 m7'11"
D-Overall Height2.31 m7'7''
E-Wheelbase2.9 m9'6''
Ground Clearance0.41 m1'4''
Productivity
Max. Capacity3500 kg7716 lbs
Gradebility-Unladen45%
Min.Turning Radius4.1 m13'5''
Tilt Angle±5°
Drive/Steering Mode4 Wheel Driving/4 Wheel Steer
Primary Boom Ascending Time7.4 s
Primary Boom Descending Time5.4 s
Boom Extending Time7.6 s
Boom retracting Time4.8 s
Forward-First Gear Travel Speed4.5 km/h2.8 mph
Forward-Second Gear Travel Speed9.5 km/h5.9 mph
Forward-Third Gear Travel Speed19 km/h11.8 mph
Forward-Fourth Gear Travel Speed27 km/h16.8 mph
Backward-First Gear Travel Speed4.5 km/h2.8 mph
Backward-Second Gear Travel Speed9.5 km/h5.9 mph
Backward-Third Gear Travel Speed

19.5 km/h12.1 mph
Standard Tires460/70 R24
Power
ManufacturerYuchai (Euro Ⅲ engine)
Rated Power 73 kW97.9hp
Max. Torque420 N.m309.8 lb.ft
Displacement3621 ml221 cu.in
Tank Capacity
Hydraulic Oil Capacity100 L26.4 gal
Fuel Tank Capacity130 L34.3 gal
Weight
Machine Weight7300 kg16094 lbs
