LGMG HR2150(HR2150)
  • LGMG HR2150(HR2150)
Telehandler

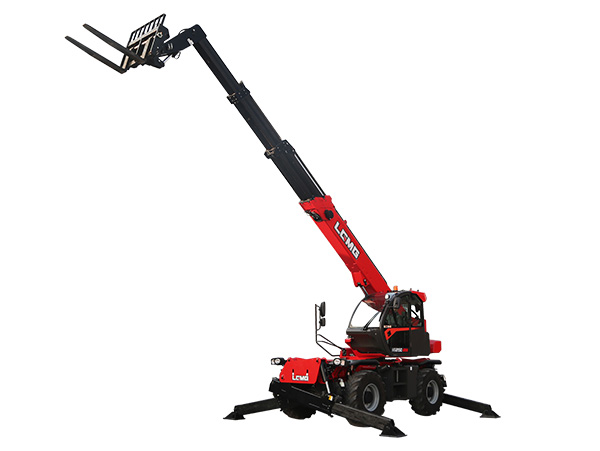

LGMG HR2150(HR2150)

  • 20.7m(67'11'')
    Work Height Max.
  • 4999kg(11021lbs)
    Platform Capacity
  • 2.46m(8'1'')
    Machine Width
View Complete Details
  • Overview
  • Specifications
Overview

The HR2150 seamlessly integrates excellent performance with all-terrain adaptability. With an ingenious design, it integrates the functions of telehandlers, cranes, and aerial work

platforms, earning it the title of a multi-functional tool among engineering equipment.

 The HR2150 adopts an innovative 360-degree omnidirectional cab design, allowing for

all round construction work with a fixed chassis.


 The HR2150 is equipped with four independently controlled outriggers that can be extended or retracted individually or simultaneously.


 The HR2150 telehandler features an auto-leveling front axle and an actively floating rear

axle, providing enhanced shock absorption.


 Its intelligent control system design ensures convenient and safe operation, making

each job easy and effortless.


Specifications
ModelsHR2150
MeasurementsMetricImperial
A-Max. Lifting Height20.7 m67'11"
Max. Outreach18.1 m59'5''
B-Overall Lenth6.86 m22'6''
C-Overall Width 2.46 m8'1''
D-Overall Height3.15 m10'4''
E-Wheelbase2.75 m9'
F-Wheel Track1.93 m6'4''
Ground Clearance0.39 m1'3''
Productivity
Max. Capacity4999 kg11021 lbs
Gradebility-Unladen65%
Min.Turning Radius3.65 m12'
Tilt Angle±9°
Drive/Steering Mode4 Wheel Driving/4 Wheel Steer
Primary Boom Ascending Time27 s
Primary Boom Descending Time22 s
Boom Extending Time32 s
Boom retracting Time23 s
Forward-First Gear Travel Speed5 km/h3.1mph
Forward-Second Gear Travel Speed30 km/h18.6mph
Backward-First Gear Travel Speed5 km/h3.1mph
Backward-Second Gear Travel Speed30 km/h18.6mph
Max. Braking Distance-Unladen≤ 3 m (27 km/h)≤9'11''(16.8mph)
Standard Tires445/70 R22.5
Power
ManufacturerPerkins (Euro Ⅲ engine)
Rated Power106 kW142.1 hp
Max. Torque558 N.m441.6 lb.ft
Displacement4400 ml268.5 cu.in
Tank Capacity
Hydraulic Oil Capacity260 L68.7 gal
Fuel Tank Capacity170 L44.9 gal
Weight
Machine Weight17100 kg37699 lbs
