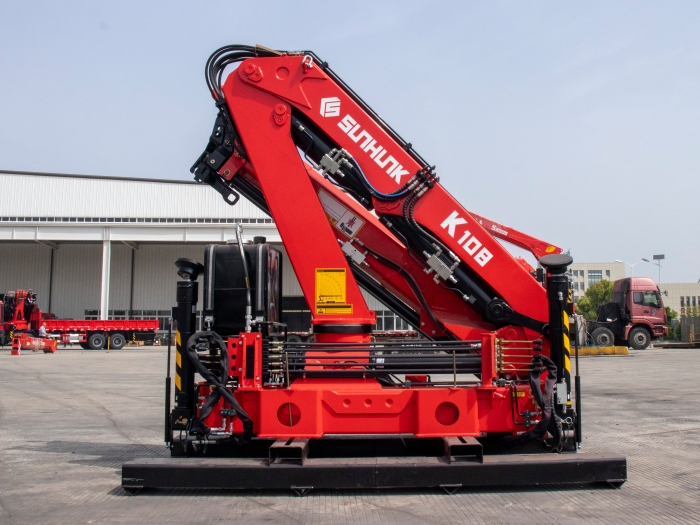

Lightweight and Portable, Efficient Operation
♦ Two extendable boom sections, with a maximum working range of 8.15 meters.
♦ The main body plate of the crane is made of high-strength steel, ensuring structural strength while the weight of the crane is only 1600kg.
♦ Customized hydraulic key components to enhance product competitiveness.
♦ Optional four-section extendable boom to meet personalized customization needs.
♦ Complies with domestic and international standards and regulations.
♦ The hydraulic valve lock uses high-quality brands for higher reliability.
♦ Manual flip vertical cylinder for simpler and more flexible operation, ensuring stability during operations.
♦ Equipped with high-pressure filter to effectively control hydraulic oil cleanliness and increase continuous operating ability.
♦ Rack and pinion swivel structure for smoother and more powerful swiveling.
| Rated load | 5000kg |
| Rated lifting capacity | 10.8t.m |
| Max. working range | 8.15m |
| Maximum lifting height | 10.77m |
| Number of boom sections | 3sections |
| Maximum angle of elevation | 85° |
| Swing angle | 360° |
| Support leg spread | 4830mm |
| System displacement | 40L/min |
| Crane self-weight | 1600kg |
| System rated pressure | 30mpa |
