Sunhunk K1080
  • Sunhunk K1080
  • Sunhunk K1080
  • Sunhunk K1080
  • Sunhunk K1080
Knuckle Boom Crane

Sunhunk K1080

  • 50000kg
    Rated load
  • 108t.m
    Rated lifting capacity
  • 20.1m
    Max. working range
View Complete Details
  • Overview
  • Specifications
Overview

Professional Moving, Industry Customization

1. Equipped with European famous brand remote control +CAN bus electric control valve, world-class control level, low delay response, suitable for ultra-high-precision lifting.

2. One arm bending technology, reliable performance;

3. Double import rotary reducer, rotary efficient, stable, powerful;

4. The application of high-strength steel design, compact structure, high lightweight;

5. Advanced hydraulic system, with very excellent boom expansion speed, boom anti-shaking, multi-action linkage, proportional action and other functions;

6. Reliability test three times higher than the industry standard, high reliability;

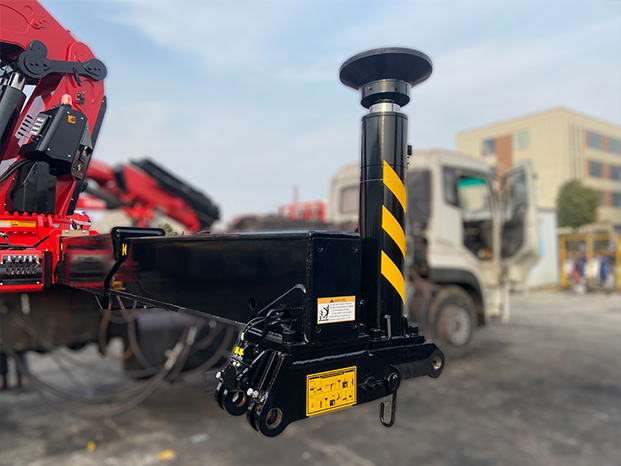

7. Standard 8.6m long-span double-stage legs, high stability;

8. Standard equipped with gravity limit protection, traffic safety protection and other complete safety systems.

9. International standard design to ensure good scalability;

Specifications
Rated load 50000kg
Rated lifting capacity 108t.m
Max. working range 20.1m
Maximum lifting height 23.6m
Number of boom sections 8sections
Maximum angle of elevation 80°
Swing angle 360°
Support leg spread 8570mm
System displacement 115L/min
Crane self-weight 9600kg
System rated pressure 33mpa
