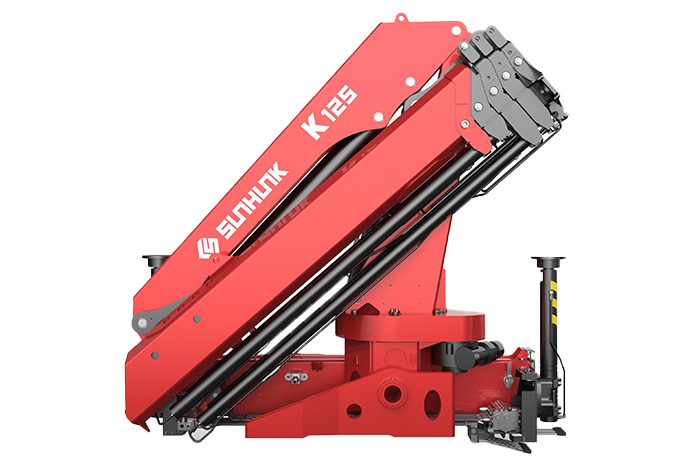

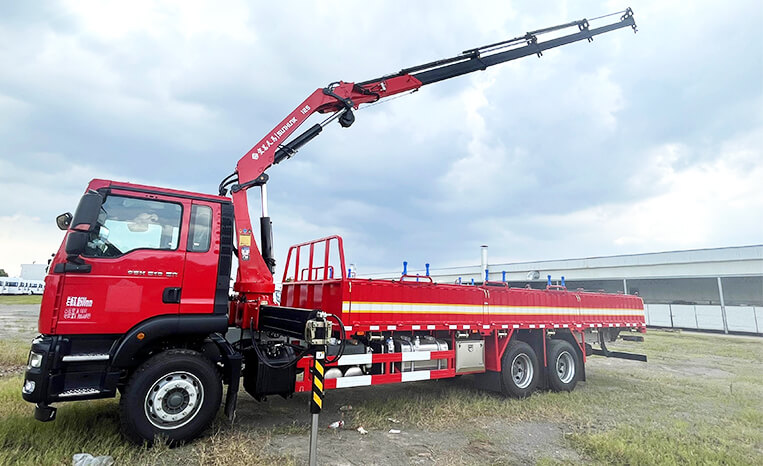

Electric pole and seedlings expert
♦ Multiple optional configurations to easily meet personalized customization needs.
♦ Hexagon single-plate bending technology for the boom, which is more sturdy and durable.
♦ Variable cross-section turntable design, with a compact structure, beautiful appearance, and high-strength steel application, resulting in a lighter overall weight.
♦ Double-link variable amplitude mechanism with a 15° negative angle, which has a wide range of applications and flexible operation.
♦ Standard large-span fixed legs, with optional manual flip-up for better stability and convenience during operation.
| Rated load | 6300kg |
| Rated lifting capacity | 12.5t.m |
| Max. working range | 12.4m |
| Maximum lifting height | 14m |
| Number of boom sections | 4sections |
| Maximum angle of elevation | 88° |
| Swing angle | 360° |
| Support leg spread | 5389mm |
| System displacement | 34L/min |
| Crane self-weight | 2400kg |
| System rated pressure | 30mpa |
