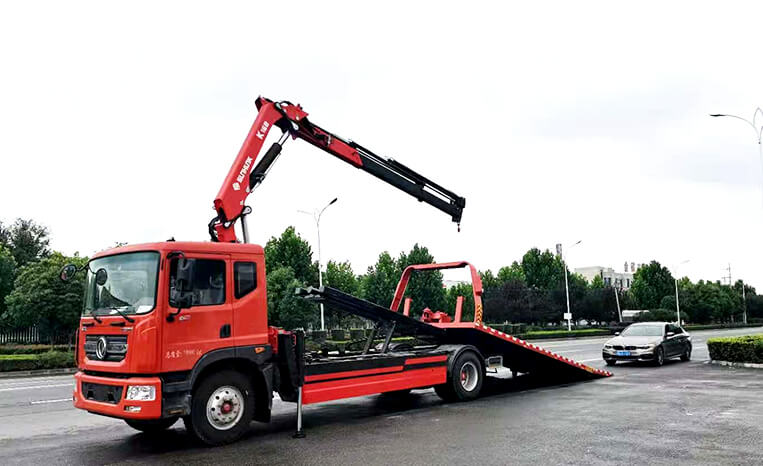

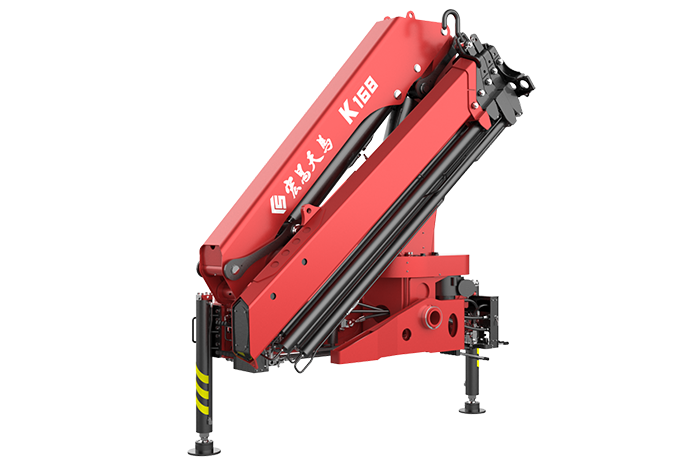

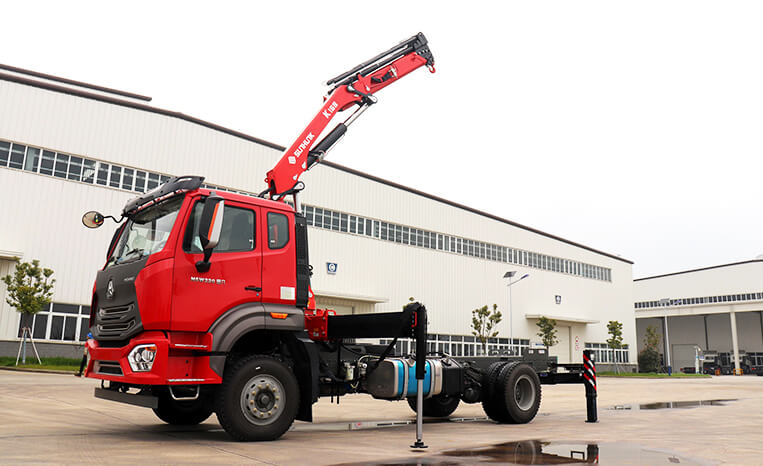

Small-scale lifting device
♦ New generation lightweight platform, high starting point.
♦ Multiple optional configurations, easily meeting personalized customization needs.
♦ Hexagon single-plate bending technology for the boom, more sturdy and durable.
♦ Variable cross-section turntable design, compact structure, beautiful appearance, and high-strength steel application, resulting in lighter overall weight.
♦ Dual four-link variable amplitude mechanism, with a 15-degree negative angle for the second change, has a wide application range and flexible operation.
| Rated load | 8000kg |
| Rated lifting capacity | 16t.m |
| Max. working range | 12.4m |
| Maximum lifting height | 14m |
| Number of boom sections | 4sections |
| Maximum angle of elevation | 88° |
| Swing angle | 360° |
| Support leg spread | 5345mm |
| System displacement | 34L/min |
| Crane self-weight | 2500kg |
| System rated pressure | 30mpa |
