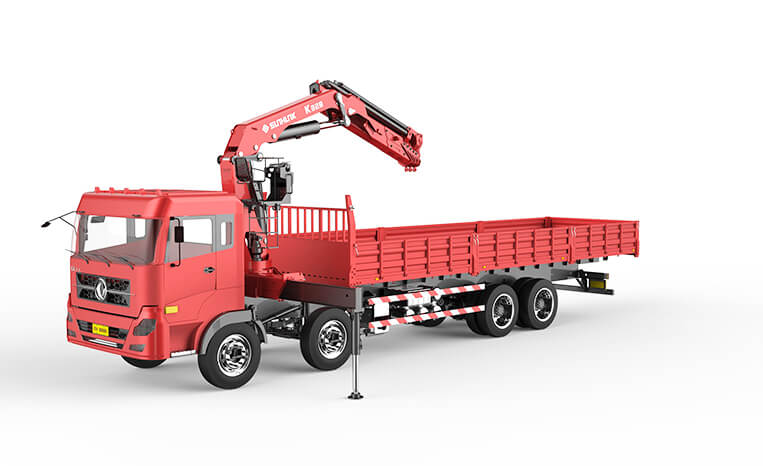

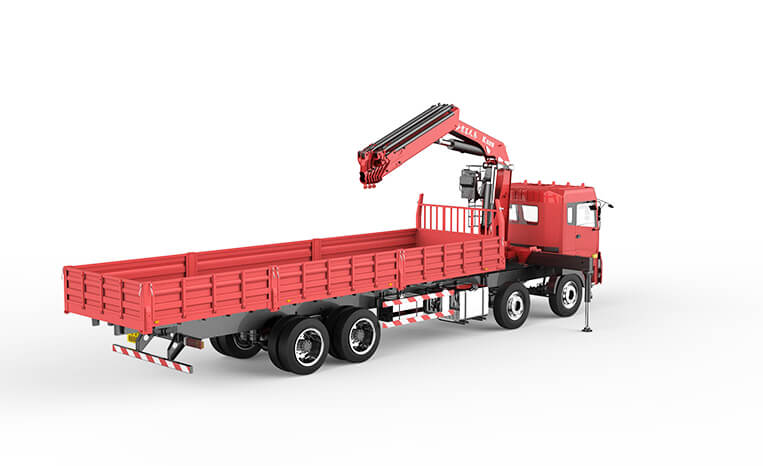

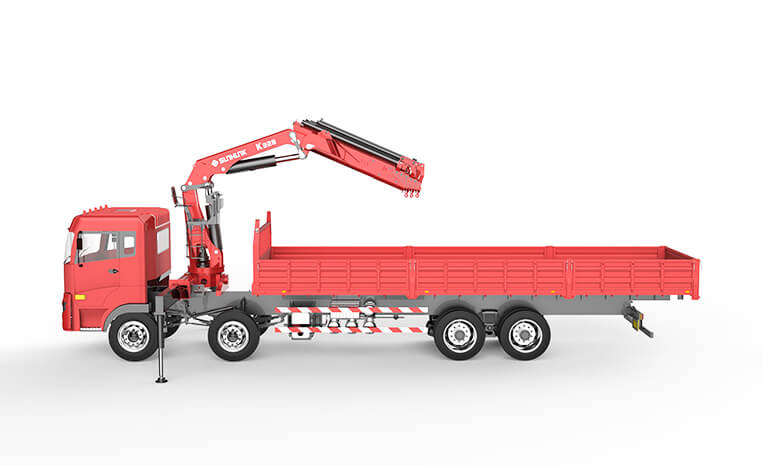

Logistics and transportation's perfect match
♦ Multiple optional configurations to easily meet individual customization needs.
♦ follows international standards to ensure good expandability.
♦ Compact structure, applied high-strength steel, resulting in lighter overall weight.

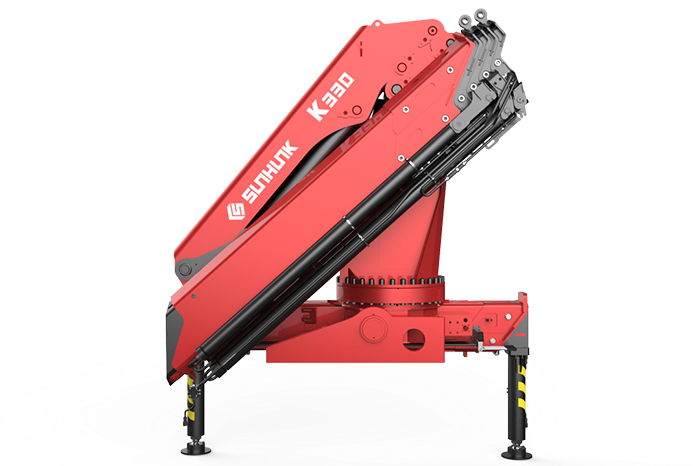

♦ Dual four-link variable amplitude mechanism, with a 15-degree negative angle for the second transition, has a wide range of applications and flexible operation.
♦ An optional wireless remote control system can be selected for more convenient operation.
| Rated load | 15000kg |
| Rated lifting capacity | 30t.m |
| Max. working range | 12.23m |
| Maximum lifting height | 15.2m |
| Number of boom sections | 4sections |
| Maximum angle of elevation | 80° |
| Swing angle | 360° |
| Support leg spread | 5912mm |
| System displacement | 64L/min |
| Crane self-weight | 4300kg |
| System rated pressure | 33mpa |
