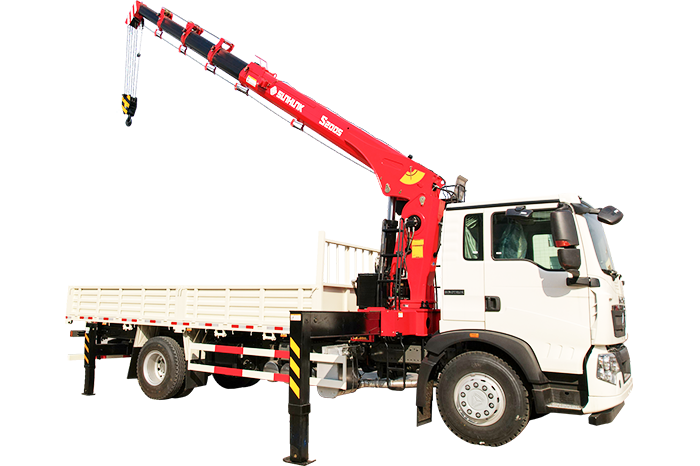

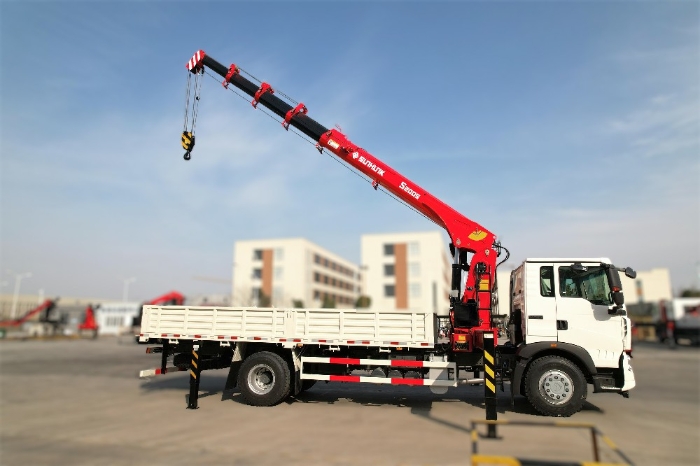

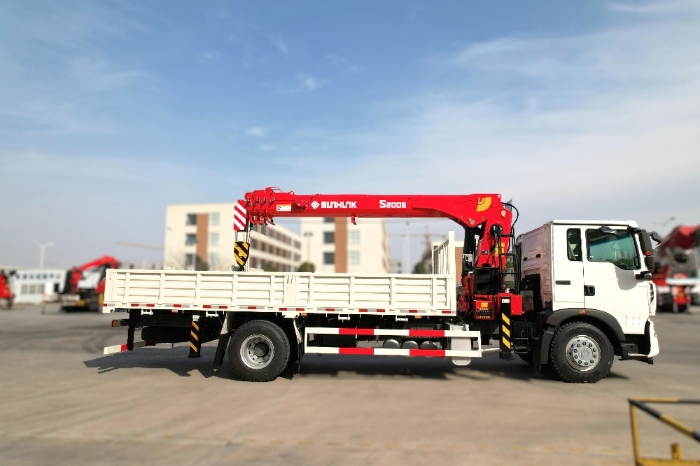

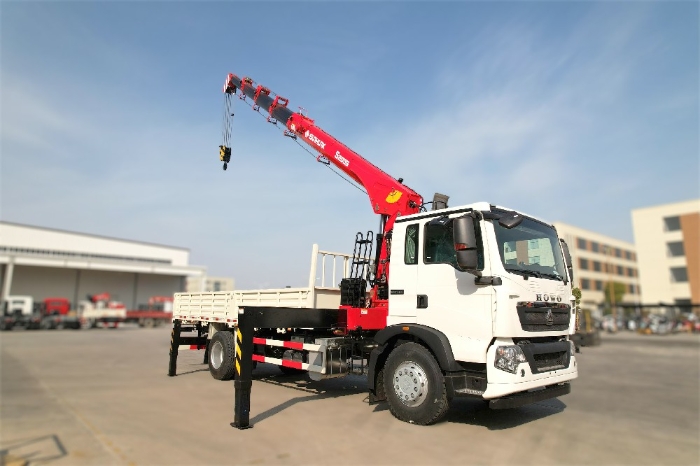

Greening gardener speed elite
♦ The key structural components are made of Q690 high-strength steel plate through welding, which provides high strength and light weight.
♦ The rated torque of the slewing reducer is 4400 N.m, which is the highest among its peers, resulting in stronger operational capacity.
♦ The brand-new boom can achieve a maximum angle of up to 80 degrees. The octagon-shaped reinforced boom has good bending resistance, high safety factor, and a 15% higher carrying capacity than the same tonnage hexagon boom.
♦ The boom uses a single-cylinder and cable structure that is developed independently. It cooperates with domestic well-known manufacturers to develop extendable cylinders. The system uses mechanical stroke valve control, has low pressure loss, saves energy, and does not generate heat
♦ The maximum working range is 16.8 meters, which is about 0.8 meters longer than the mainstream five-section boom models in the market, providing a more significant advantage.
| Rated load | 8000kg |
| Rated lifting capacity | 20t.m |
| Max. working range | 17.1m |
| Maximum lifting height | 19.5m |
| Number of boom sections | 5sections |
| Maximum angle of elevation | 80° |
| Swing angle | 360° |
| Support leg spread | 6000mm |
| System displacement | 64L/min |
| Crane self-weight | 3950kg |
| System rated pressure | 30mpa |
