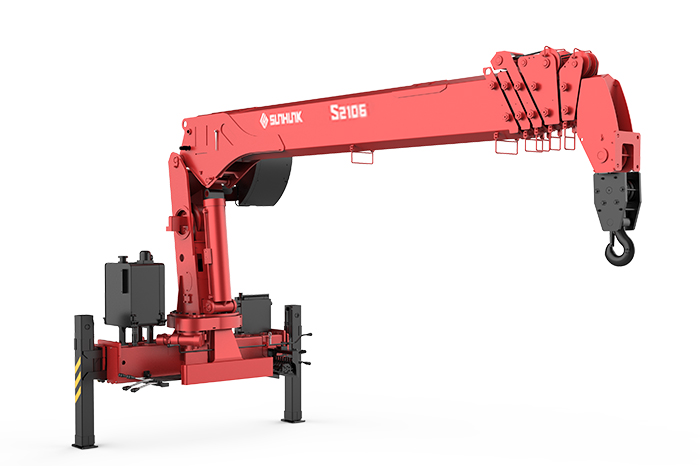

Sunhunk S2106

SUNHUNK Straight Boom Cranes

1、The key structural components are welded with Q690 high-strength steel plate, which has high strength and light weight.

2、The slewing reducer has a rated torque of 4220 N.m, which is the highest torque among its peers, providing stronger operational capability.

3、The boom is an enhanced hexagon structure with stable telescoping and a lifting capacity 20% stronger than conventional hexagon structures.

4、The boom telescoping mechanism is imported with a three-stage cylinder and rigging telescoping, sequential extension, and the first two telescoping arms are driven by independent cylinders. The medium and short arms have strong load-bearing telescoping capabilities.

5、The maximum operating range is 20.3 meters, which is the largest in the industry for the same tonnage and has strong cross-obstacle capabilities.

6、Double-stage legs, with a span of 5.8 meters, provide higher stability for the entire vehicle.

7、The main moving parts and electrical and hydraulic components can work in low temperatures (-40°C), with stronger adaptability.
