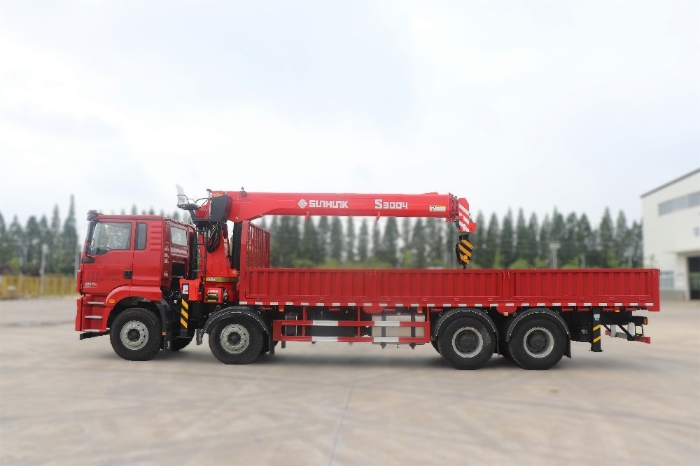

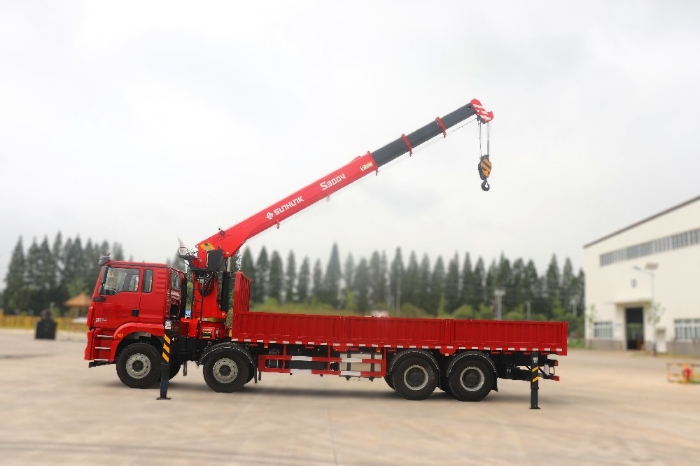

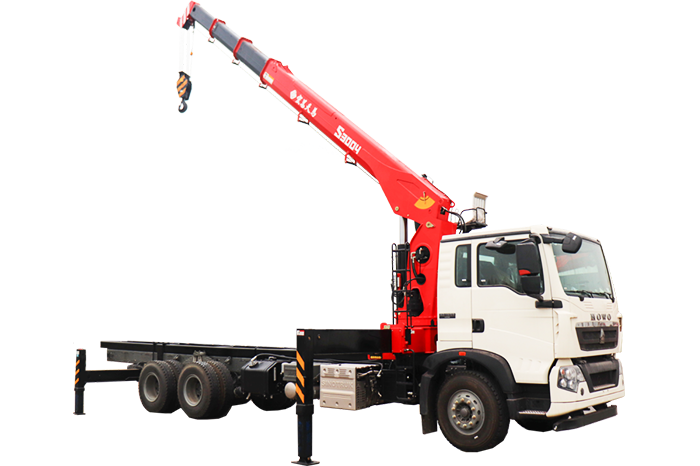

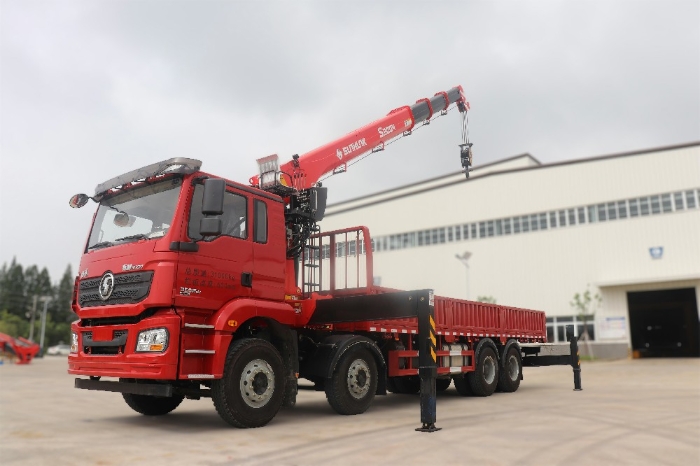

Power Overlord, Infrastructure Preferred
♦ The key structural components are welded with Q690 high-strength steel plate, which has high strength and light weight.
♦ The rated torque of the slewing reducer is 6500 N.m, which is the maximum torque among its peers, resulting in stronger operational capacity.
♦ The octagon boom has a light weight and a 15% higher carrying capacity compared to the same tonnage hexagon boom.
♦ The maximum working range is 15.5 meters. This is about 0.5 meters longer than the mainstream four-section boom models in the market, providing a more significant advantage.
♦ An optional auxiliary lifting device is available to meet different lifting requirements of customers.
| Rated load | 12000kg |
| Rated lifting capacity | 30t.m |
| Max. working range | 15.8m |
| Maximum lifting height | 18.2m |
| Number of boom sections | 4sections |
| Maximum angle of elevation | 75° |
| Swing angle | 360° |
| Support leg spread | 6000mm |
| System displacement | 84L/min |
| Crane self-weight | 4400kg |
| System rated pressure | 30mpa |
