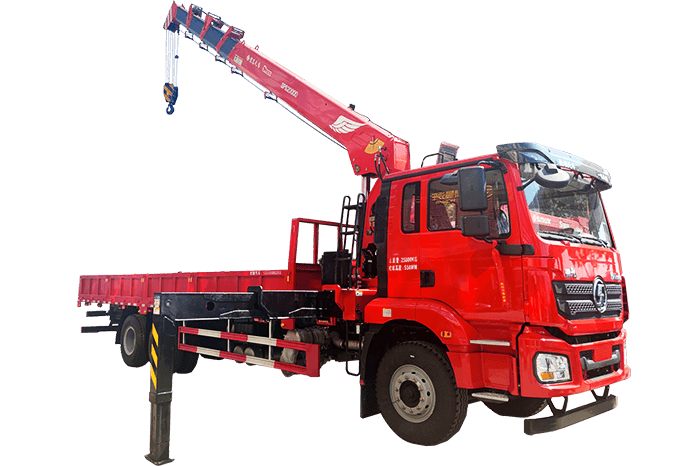

Straight-Arm Efficiency King
♦ The key structural components are welded with Q690 high-strength steel plate, which provides high strength and light weight.
♦ The rated torque of the slewing reducer is 6500 N.m, which is the highest among its peers, resulting in stronger operational capacity.
♦ The octagon boom has a light weight and a 15% higher carrying capacity than the same tonnage hexagon boom.
♦ The maximum operating range is 19 meters, which is about 3.5 meters longer than the mainstream four-section boom models in the market, meeting more working conditions.
♦ Double extendable arms with cable lock, with a safe coefficient of load extension higher than the industry's same level by 40%.
| Rated load | 13000kg |
| Rated lifting capacity | 33t.m |
| Max. working range | 19m |
| Maximum lifting height | 22m |
| Number of boom sections | 5sections |
| Maximum angle of elevation | 75° |
| Swing angle | 360° |
| Support leg spread | 7500mm |
| System displacement | 84L/min |
| Crane self-weight | 4800kg |
| System rated pressure | 28mpa |
