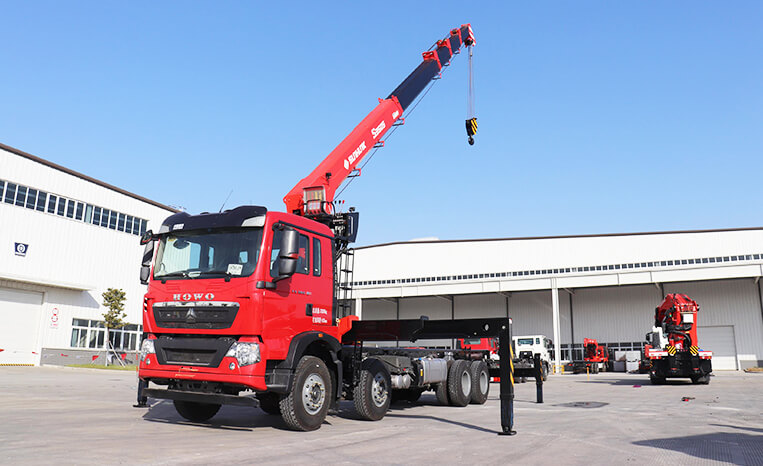

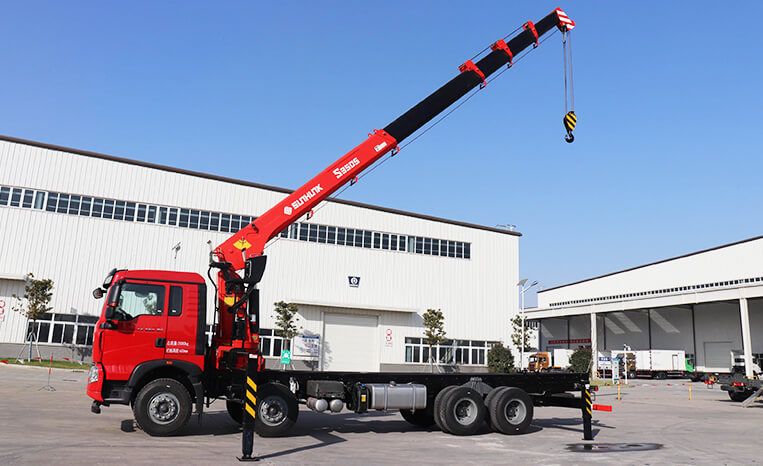

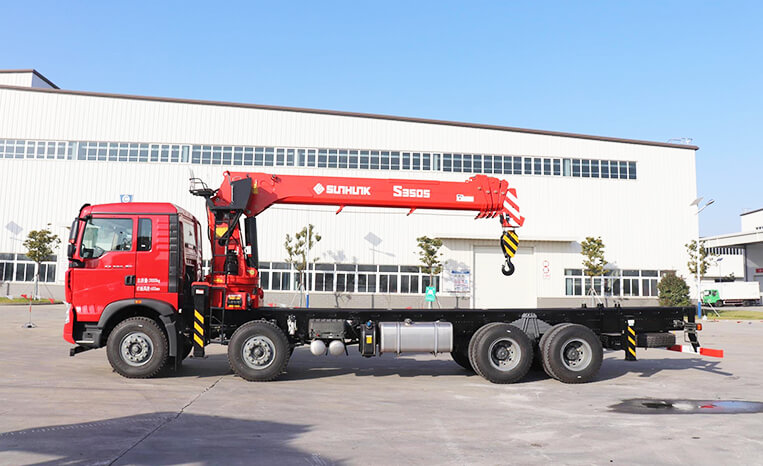

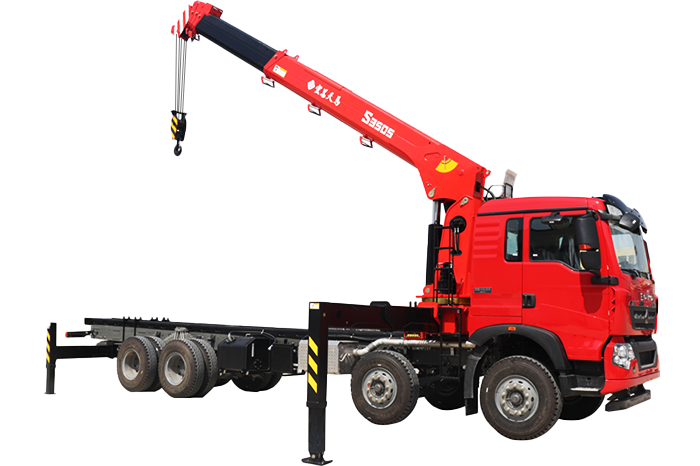

Urban Construction All-Round Expert
♦ Octagon boom, with light self-weight and 15% higher carrying capacity than the same tonnage hexagon boom.
♦ Double-stage legs, with a lateral span of 7.38m, for more stable operation.
♦ Dual-axisReducer, with stronger operating capacity and more stable rotation.
♦ Dual extendable cable, with a load-bearing extension safety factor 40% higher than the industry's same level.
♦ Optional auxiliary lifting device to meet different lifting requirements of customers.
| Rated load | 14000kg |
| Rated lifting capacity | 35t.m |
| Max. working range | 18.8m |
| Maximum lifting height | 21.5mm |
| Number of boom sections | 5sections |
| Maximum angle of elevation | 75° |
| Swing angle | 360° |
| Support leg spread | 7380mm |
| System displacement | 100L/min |
| Crane self-weight | 5700kg |
| System rated pressure | 33mpa |
