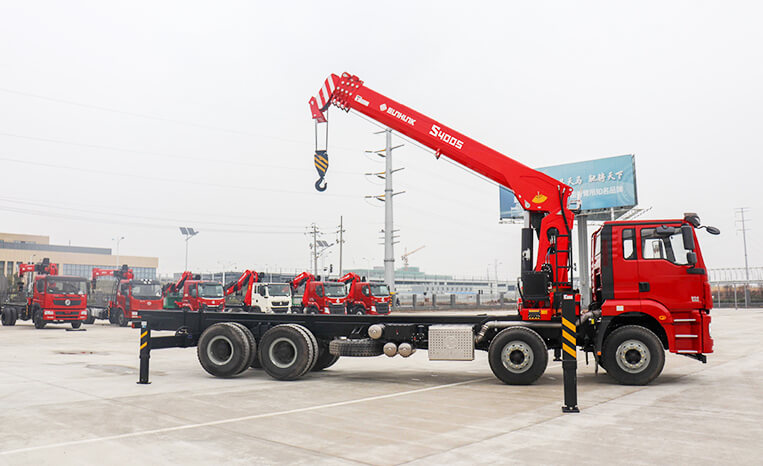

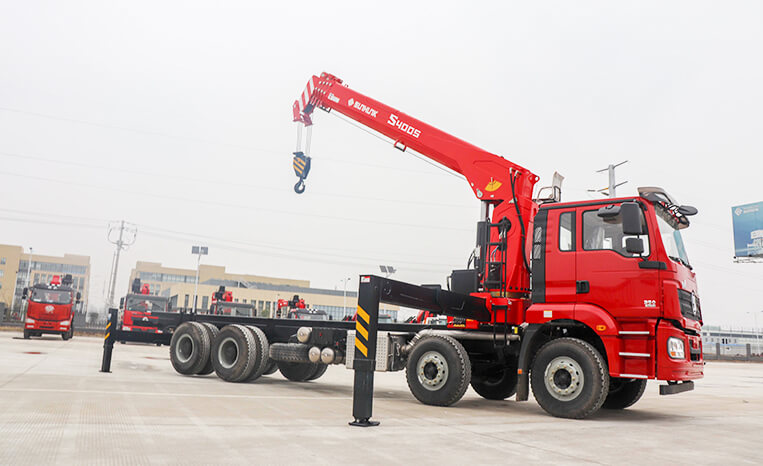

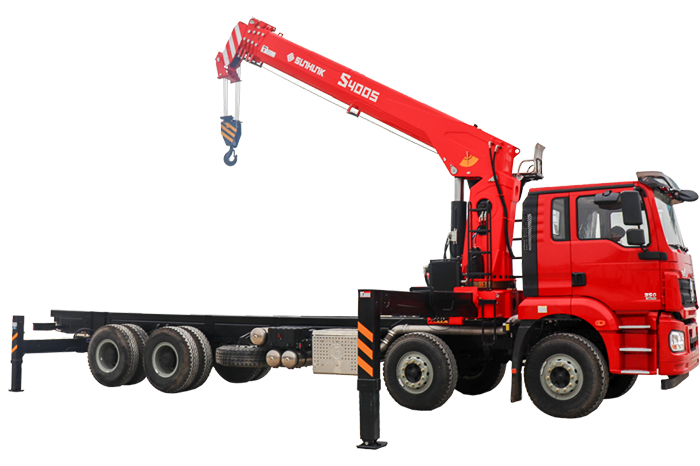

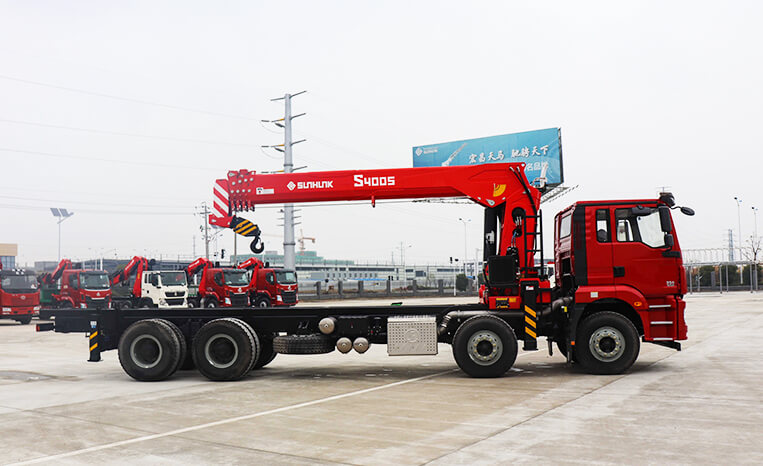

Mighty King of Lifting Machines
♦ All key structural components are welded with Q690 high-strength steel plate, which has high strength and light weight.
♦ The octagon boom has a light weight and a 15% higher carrying capacity than the same tonnage hexagon boom.
♦ The maximum operating range is 19.2 meters, with strong ability to cross obstacles.
♦ Double-stage legs, with a lateral span of 7.8 meters, have the largest span among products of the same level, resulting in more stable operation.
♦ Standard dual-axis reducer with powerful and stable rotation, the strongest in the industry.
| Rated load | 16000kg |
| Rated lifting capacity | 40t.m |
| Max. working range | 19.6m |
| Maximum lifting height | 22.2m |
| Number of boom sections | 5sections |
| Maximum angle of elevation | 75° |
| Swing angle | 360° |
| Support leg spread | 7800mm |
| System displacement | 100L/min |
| Crane self-weight | 6400kg |
| System rated pressure | 30mpa |
