| Drilling depth | 3000m |
| Max. diameter of working floor | Ф820mm |
| Max. pulling force | 1300kN |
| Max. torque | 28500/18300N·m |
| Max. speed | 110/180rpm |
| Rated power | 571kW |
| Emission standard | EU III |
| Wight | 55t |
| Transport dimensions | 14200×2550×4000mm |

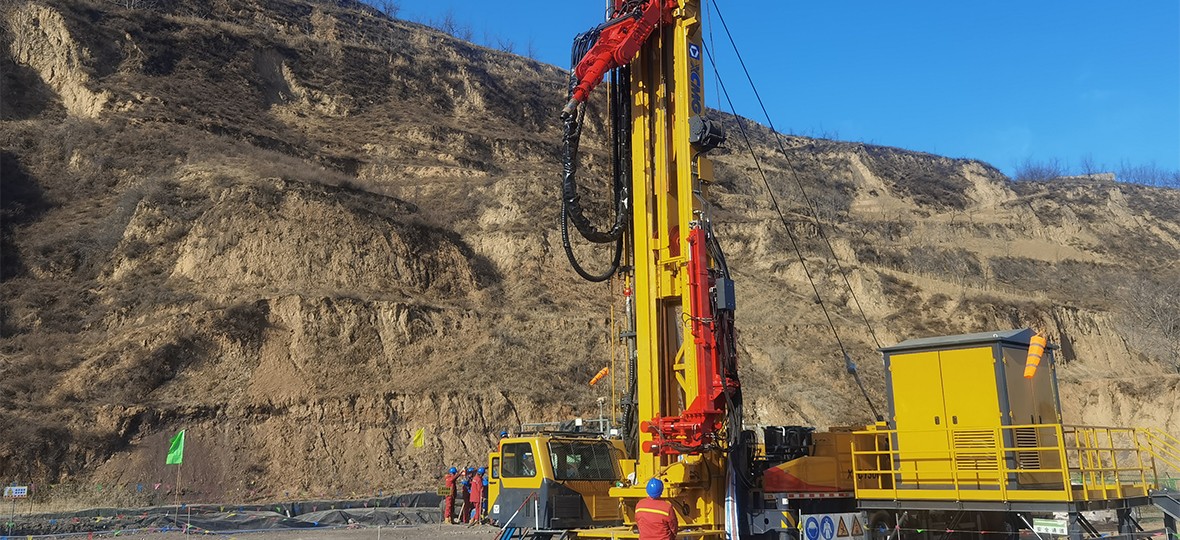

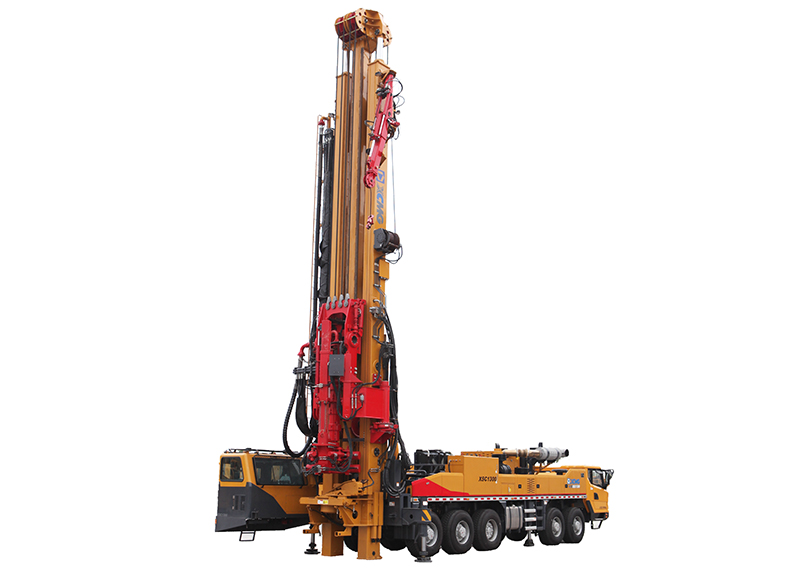

XSC1300 deep well drilling rig is applicable to water well, geothermal, coal bed gas, emergency rescue, and other drilling projects.
>Efficient and energy-saving hydraulic system
>Powerful top drive
>Telescopic feed system
>Fully automatic drill rod handling mechanism(option)
>Road-adaptive intelligent all-terrain chassis
| Drilling depth | 3000m |
| Max. diameter of working floor | Ф820mm |
| Max. pulling force | 1300kN |
| Max. torque | 28500/18300N·m |
| Max. speed | 110/180rpm |
| Rated power | 571kW |
| Emission standard | EU III |
| Wight | 55t |
| Transport dimensions | 14200×2550×4000mm |
