| Drilling depth | 3000(Ф114)m |
| Max. diameter of working floor | Ф698.5mm |
| Max. pulling force | 1800kN |
| Max. torque | 36000N·m |
| Max. speed | 180rpm |
| Rated power | 400×2 (Electromotor )kW |
| Wight | 160t |
| Transport dimensions | (Modularized)mm |

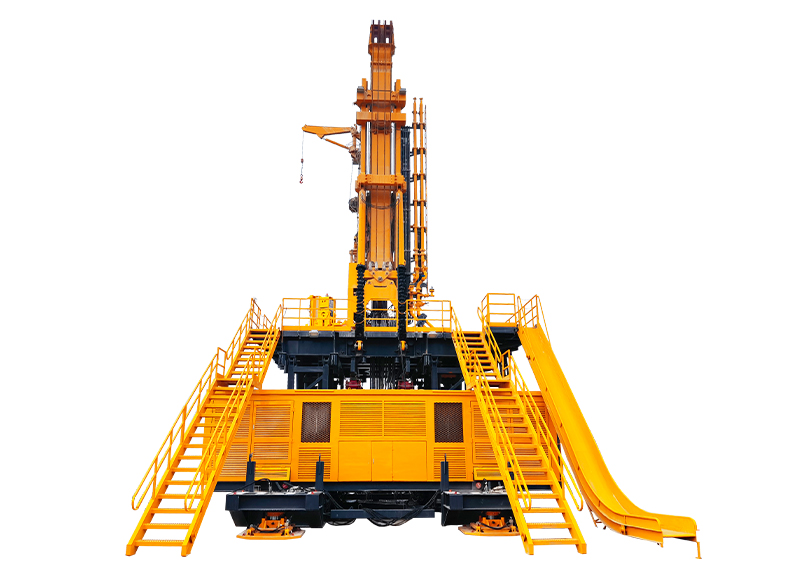

XSM1800 digital modular drilling rig is a new type of drilling rig specially developed to overcome the shortcomings of existing drilling rigs, such as inconvenient transport, large floor space and low working efficiency. It is used for shallow oil and gas and geothermal exploitation at home and abroad, and integrates automatic equipment such as hydraulic top drive, iron roughneck, power catwalk.
| Drilling depth | 3000(Ф114)m |
| Max. diameter of working floor | Ф698.5mm |
| Max. pulling force | 1800kN |
| Max. torque | 36000N·m |
| Max. speed | 180rpm |
| Rated power | 400×2 (Electromotor )kW |
| Wight | 160t |
| Transport dimensions | (Modularized)mm |
