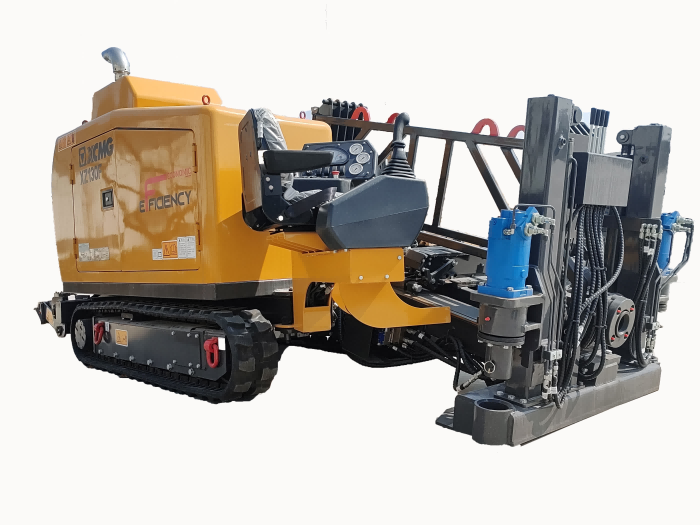

The small tonnage horizontal directional drilling rig has compact structure, excellent performance, and complete functions. It adopts hydraulic pilot control, rack and pinion thrust-pull, and the main performance parameters and control technologies have reached the international advanced level. The main components of hydraulic system, power system and walking system are all from first-class brands at home and abroad to get good performance and reliability.
| Max. Thrust-pull Force | 135kN |
| Max. Torque | 3200N·m |
| Engine Power | 81kW |
| Engine Model | Cummins |
| Emission standard | CN III |
| Max. Thrust-pull Speed | 40m/min |
| Max. Rotation Speed | 230r/min |
| Max. Mud Flow | 100L/min |
| Drill Pipe | ∅52×1.8mm×m |
| Max. Entry Angle | 18° |
| Max. Reaming Dia. | ∅400mm |
| Weight | 5t |
| Dimension | 4200×1680×2170L×W×H |
