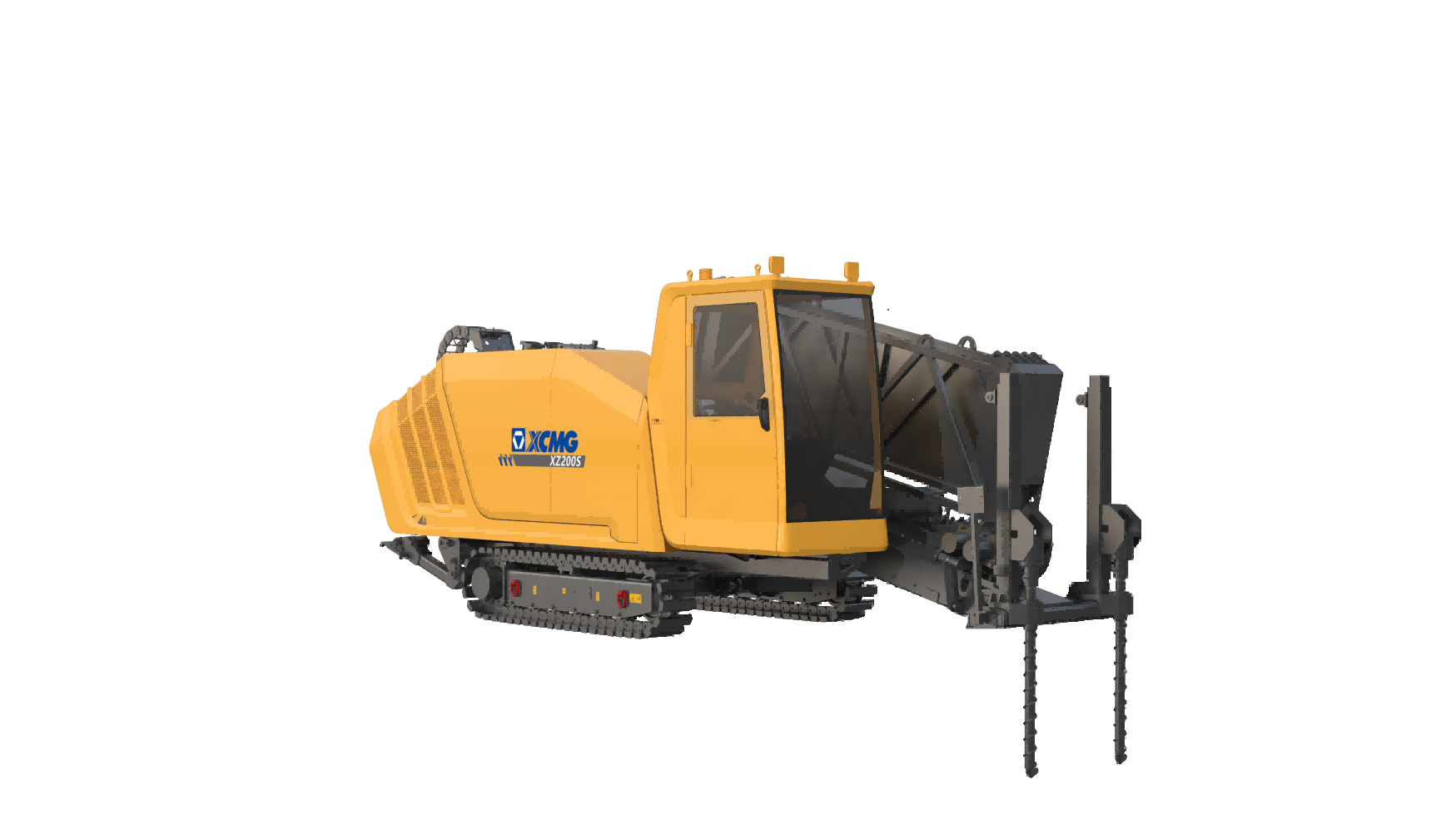

The small tonnage horizontal directional drilling rig has compact structure, excellent performance, and complete functions. It adopts hydraulic pilot control, rack and pinion thrust-pull, and the main performance parameters and control technologies have reached the international advanced level. The main components of hydraulic system, power system and walking system are all from first-class brands at home and abroad to get good performance and reliability.
| Max. Thrust-pull Force | 235kN |
| Max. Torque | 6500N·m |
| Engine Power | 110kW |
| Engine Model | 6BT5.9-C150 |
| Emission standard | _ |
| Max. Thrust-pull Speed | 55m/min |
| Max. Rotation Speed | 230r/min |
| Max. Mud Flow | 250L/min |
| Drill Pipe | ∅60×3.0mm×m |
| Max. Entry Angle | 20° |
| Max. Reaming Dia. | ∅600mm |
| Weight | 9.5t |
| Dimension | 6800×2200×2300L×W×H |
