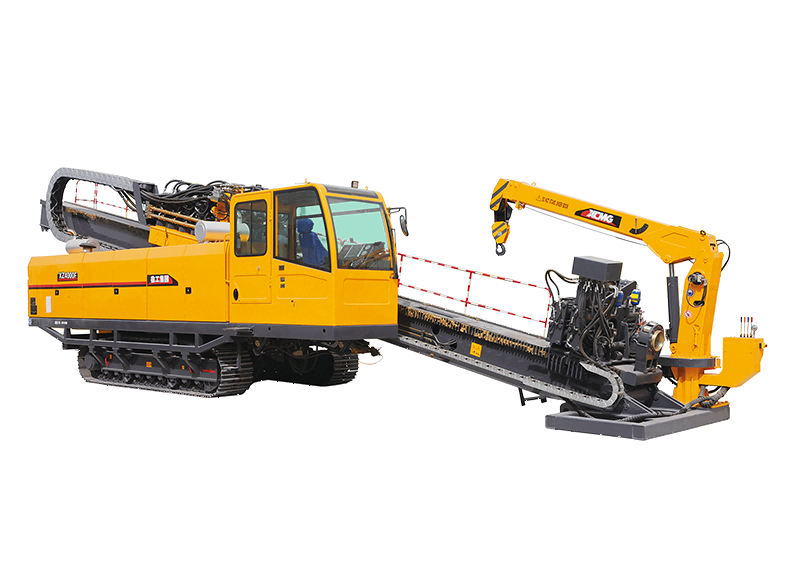

The medium & large tonnage drilling rigs are mainly used in municipal pipelines, pipe networks and other engineering projects. They adopt intelligent hydraulic control and digital display systems to get simple control and easy troubleshooting. Silent cab+multifunction integrated dual handle ensure a comfortable touch rate of over 95% for the control device. It can achieve one-button operation, fast construction, one-button drill pipe breakout, one-button semi-automatic turning & leveling, one-button high-speed rotation & thrust-pull, etc., making it convenient, fast, and safe.
| Max. Thrust-pull Force | 4000kN |
| Max. Torque | 130000N·m |
| Engine Power | 2×264kW |
| Engine Model | Cummins QSL8.9-C360 |
| Emission standard | CN III |
| Max. Thrust-pull Speed | 40m/min |
| Max. Rotation Speed | 90r/min |
| Max. Mud Flow | ExternalL/min |
| Drill Pipe | ∅140/168×9.6mm×m |
| Max. Entry Angle | 16° |
| Max. Reaming Dia. | ∅1600mm |
| Weight | 48t |
| Dimension | 17500×3200×3550L×W×H |
