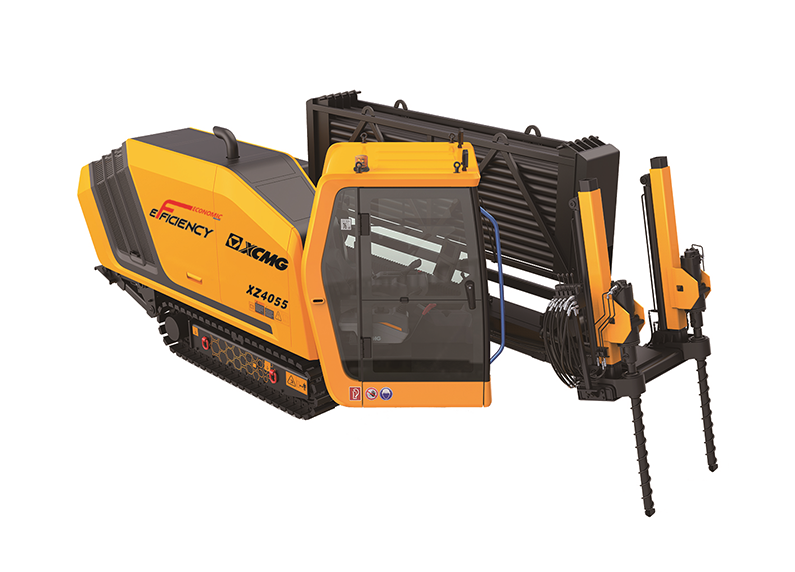

XCMG XZ4055

200kN

Max. Thrust-pull Force
7500N·m

Max. Torque
115kW

Engine Power

View Complete Details

SEND EMAIL

Complete Details

GET LATEST PRICE

QUICK INQUIRY

Overview
Specifications

Overview

human-machine interaction;

Equipped with work device position monitoring technology, mud self start & stop technology, wireless remote control walking technology, and intelligent drilling navigation system, it has high safety performance and a good operating experience.

Specifications

Max. Thrust-pull Force	200kN
Max. Torque	7500N·m
Engine Power	115kW
Engine Model	CUMMINS B4.5-C155
Emission standard	EU V
Max. Thrust-pull Speed	50m/min
Max. Rotation Speed	200r/min
Max. Mud Flow	256L/min
Drill Pipe	∅60×3.048mm×m
Max. Entry Angle	22°
Max. Reaming Dia.	∅600mm
Weight	10.5t
Dimension	6400×2240×2600L×W×H
