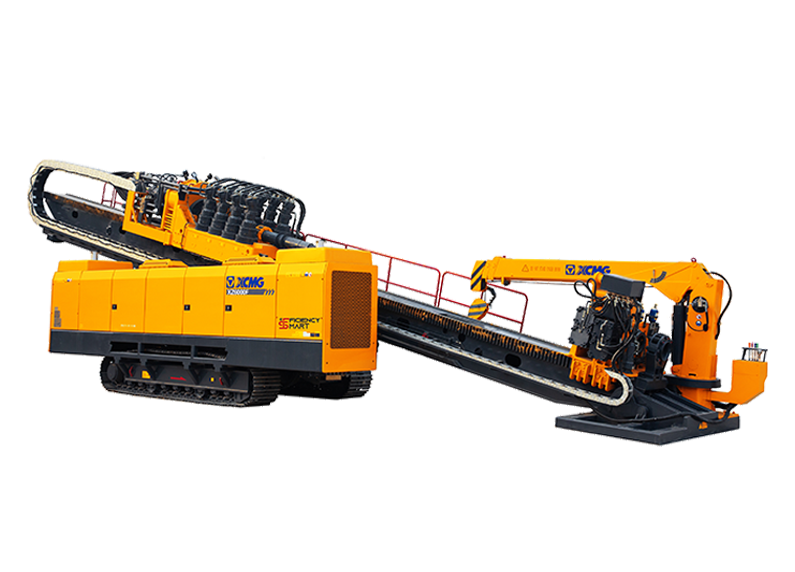

The large tonnage horizontal directional drilling rig is mainly used in large-scale projects such as national oil and natural gas. The drilling rig has a high degree of intelligence, adopts multiple power systems, multiple international leading technologies, and is safe and reliable to use. It has a modular operation room and a split type power station.
| Max. Thrust-pull Force | 6000kN |
| Max. Torque | 160000N·m |
| Engine Power | 2×354kW |
| Engine Model | Cummins QSZ13 |
| Emission standard | CN III |
| Max. Thrust-pull Speed | 35m/min |
| Max. Rotation Speed | 90r/min |
| Max. Mud Flow | ExternalL/min |
| Drill Pipe | ∅168/140×9.6mm×m |
| Max. Entry Angle | 16° |
| Max. Reaming Dia. | ∅1800mm |
| Weight | 59t |
| Dimension | 20000×3400×3770L×W×H |
