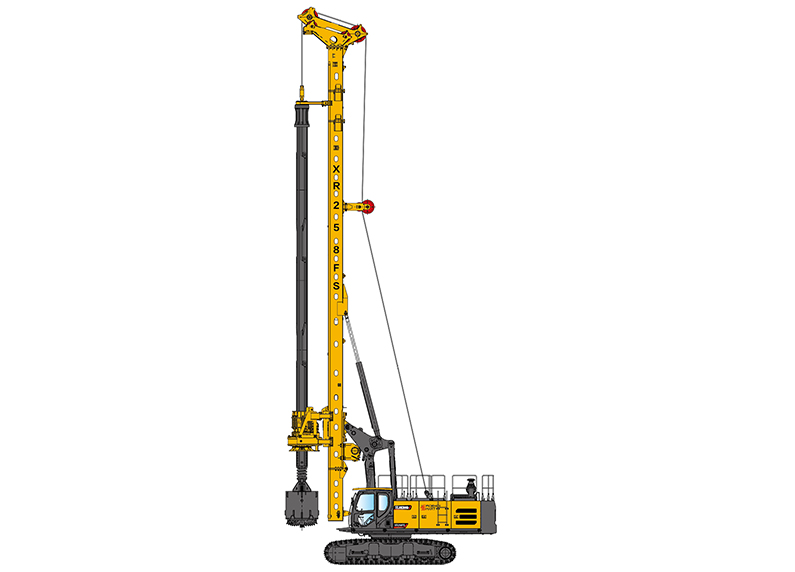

XCMG XR258FS
  • XCMG XR258FS
Rotary Drilling Rig

XCMG XR258FS

  • 2200mm
    Max. drilling diameter
  • 70/56m
    Max. drilling depth
  • 258kN·m
    Rated out torque
View Complete Details
  • Overview
  • Specifications
Overview

It is suitable for civil construction, municipal engineering and other fields, and have high construction efficiency in soil and sand layers. The site transfer is flexible. The working end output speed of the rotary drive, main and auxiliary winches is high, which ensures efficient construction. The hydraulic system adopts negative flow technology with the best matching of the main pump and engine, realizing low fuel consumption and high efficiency. The new generation of cab features sound insulation and noise reduction, and has a wide field of view and a more comfortable operating environment.


Specifications
Max. drilling diameter 2200mm
Max. drilling depth 70/56m
Rated out torque 258kN·m
Rotation speed 5-34r/min
Main winch Max.lifting force 260kN
Max.winch speed 75m/min
Crowd cylinder Max.crowd force 240kN
Crowd cylinder Max.lifting force 280kN
Engine QSL8.9
Power 242kW
Emission standard CN III
Working weight 85t
