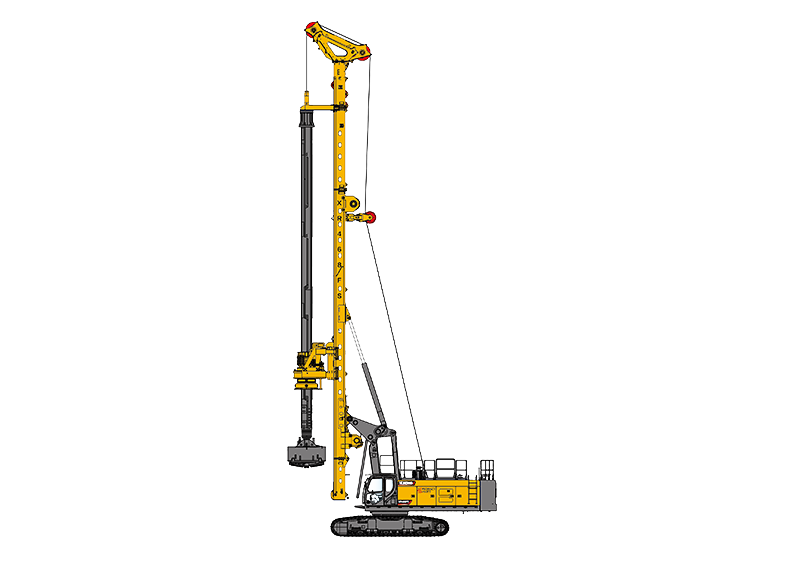

It is suitable for medium-sized pile foundation projects such as housing building, bridges, and municipal construction. The site transfer is flexible. The rotary drive has multiple gears, resulting in high overall construction efficiency. The new generation of cab features sound insulation and noise reduction, and has a wide field of view and a more comfortable operating environment.
| Max. drilling diameter | 3000mm |
| Max. drilling depth | 111/73m |
| Rated out torque | 490kN·m |
| Rotation speed | 6~25r/min |
| Main winch Max.lifting force | 480kN |
| Max.winch speed | 70m/min |
| Crowd cylinder Max.crowd force | 370kN |
| Crowd cylinder Max.lifting force | 400kN |
| Crowd winch Max.crowd force | 400kN |
| Crowd winch Max.lifting force | 400kN |
| Engine | M15 |
| Power | 563kW |
| Emission standard | CN III |
| Working weight | 142t |
