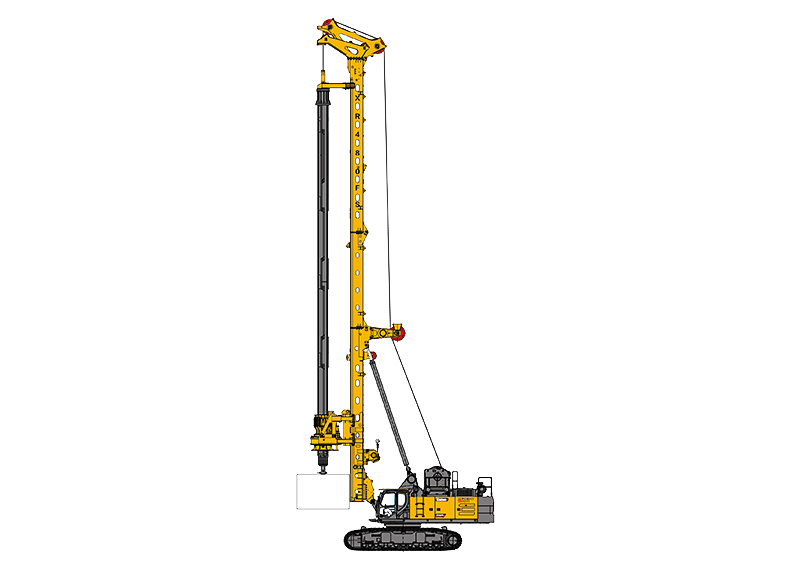

XCMG XR480FS
  • XCMG XR480FS
Rotary Drilling Rig

XCMG XR480FS

  • 3000mm
    Max. drilling diameter
  • 122/95m
    Max. drilling depth
  • 480kN·m
    Rated out torque
View Complete Details
SEND EMAIL
Complete Details
GET LATEST PRICE
QUICK INQUIRY
  • Overview
  • Specifications
Overview

It is suitable for medium & large pile foundation projects such as high-rise buildings, highways, and cross river and sea bridges. They have strong rock drilling ability and high construction efficiency in complex working conditions such as large holes, deep piles, and hard rocks.

Specifications
Max. drilling diameter 3000mm
Max. drilling depth 122/95m
Rated out torque 480kN·m
Rotation speed 6~25r/min
Main winch Max.lifting force 560kN
Max.winch speed 70m/min
Crowd cylinder Max.crowd force 420kN
Crowd cylinder Max.lifting force 420kN
Crowd winch Max.crowd force 420kN
Crowd winch Max.lifting force 420kN
Engine M15
Power 563kW
Emission standard CN III
Working weight 167t
