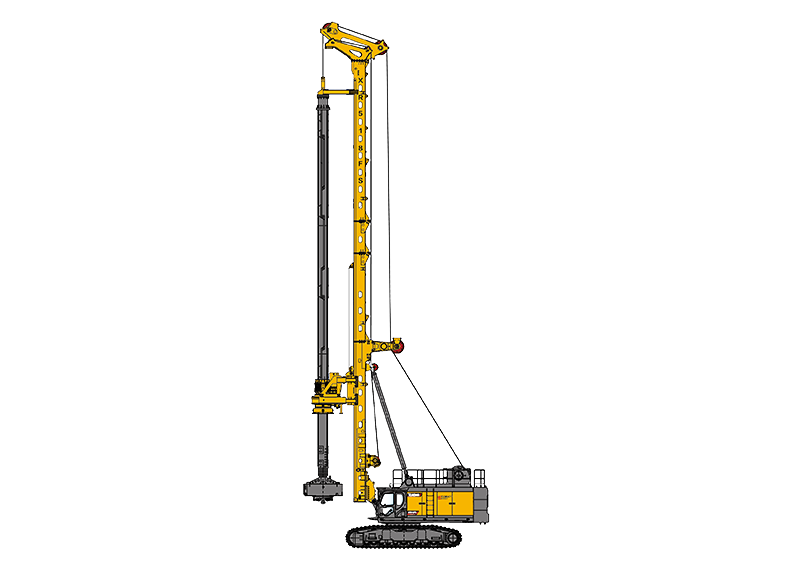

XCMG XR518FS
  • XCMG XR518FS
Rotary Drilling Rig

XCMG XR518FS

  • 3500mm
    Max. drilling diameter
  • 128/105m
    Max. drilling depth
  • 518kN·m
    Rated out torque
View Complete Details
SEND EMAIL
Complete Details
GET LATEST PRICE
QUICK INQUIRY
  • Overview
  • Specifications
Overview

It is suitable for medium & large pile foundation projects such as high-rise buildings, highways, and cross river and sea bridges. They have strong rock drilling ability and high construction efficiency in complex working conditions such as large holes, deep piles, and hard rocks.

Specifications
Max. drilling diameter 3500mm
Max. drilling depth 128/105m
Rated out torque 518kN·m
Rotation speed 6~22r/min
Main winch Max.lifting force 600kN
Max.winch speed 65m/min
Crowd cylinder Max.crowd force 500kN
Crowd cylinder Max.lifting force 500kN
Crowd winch Max.crowd force 500kN
Crowd winch Max.lifting force 500kN
Engine M15
Power 563kW
Emission standard CN III
Working weight 190t
