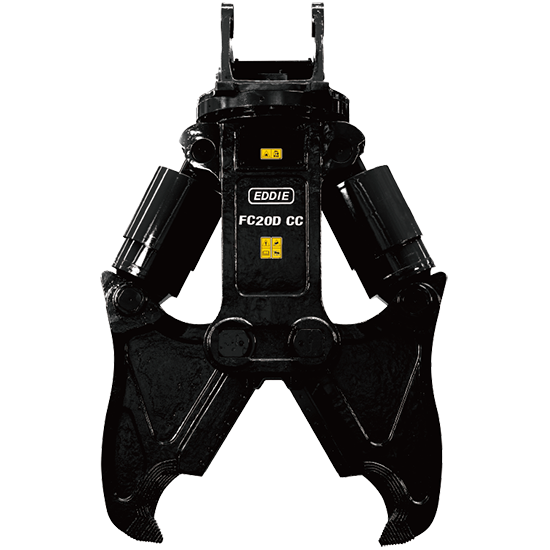

Specifications | Unit | FC08D CC | FC15D CC | FC20D CC |
Maximum Opening | mm | 550 | 850 | 1000 |
Cutting Force (Center) | kN | 705 | 2000 | 3000 |
Breaking Force (At the end) | kN | 270 | 700 | 1050 |
Operating Pressure (Cylinder) | kg/cm² | 180-250 | 300-350 | 300-350 |
Oil Flow (Cylinder) | L/min | 50-100 | 140-240 | 180-240 |
Operating Pressure (Motor) | kg/cm² | 60-90 | 120-160 | 120-160 |
Oil Flow (Motor) | L/min | 20-30 | 30-50 | 30-50 |
Suitable Carriers | ton | 6-13 | 17-25 | 26-35 |
Rotation | Mechanical rotation or hydraulic rotation (choose one), freely rotate at any angle up to 360 degrees. | |||
