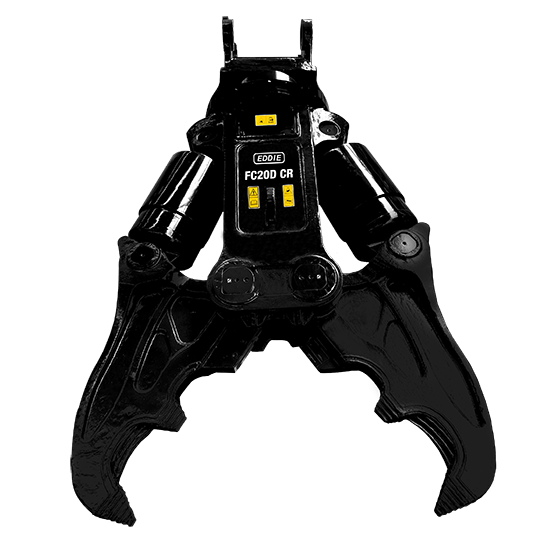

Specifications | Unit | FC10D CR | FC15D CR | FC20D CR |
Maximum Opening | mm | 620 | 950 | 1100 |
Cutting Force (Center) | kN | 1100 | 2250 | 3300 |
Breaking Force (At the end) | kN | 385 | 685 | 1100 |
Operating Pressure (Cylinder) | kg/cm² | 200-300 | 300-350 | 300-350 |
Oil Flow (Cylinder) | L/min | 60-120 | 140-240 | 180-240 |
Operating Pressure (Motor) | kg/cm² | 60-90 | 120-160 | 120-160 |
Oil Flow (Motor) | L/min | 20-30 | 30-50 | 30-50 |
Suitable Carriers | ton | 10-16 | 17-25 | 26-35 |
Rotation | Mechanical rotation or hydraulic rotation (choose one), freely rotate at any angle up to 360 degrees. | |||
