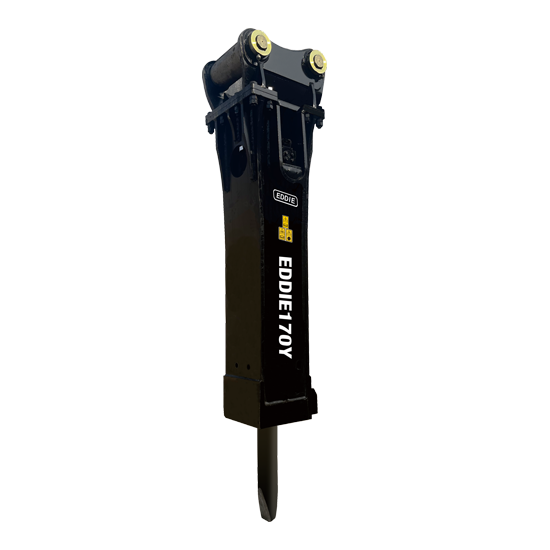

| Specifications | Unit | EDDIE170Y |
| Operating Pressure | kg/cm² psi bar | 160-180 2272-2556 157-177 |
| Machine Weight | t | 3.9 |
| Oil Flow | l/min gal/min | 250-350 66-92 |
| Impact Frequency-short stroke | bpm | 480-670 |
| Impact Frequency-long stroke | bpm | 370-520 |
| Tool Diameter | mm inch | 166 6.54 |
| Suitable Carriers | ton | 36-55 |
