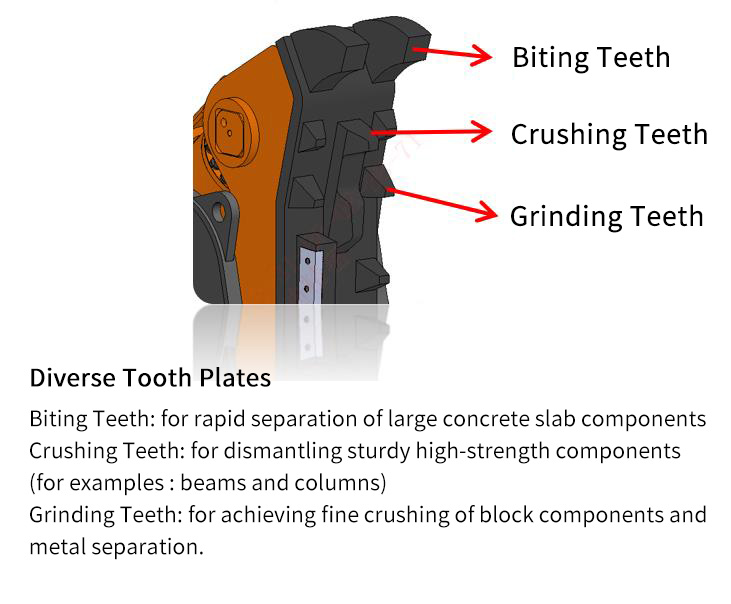

The fixed pulverizers are secondary demolition equipments, mainly used for crushing and separating ground reinforced concrete and road materials. Equipped with ultra-high pressure hydraulic cylinders and a large-flow speed-up valve, the hydraulic power is sufficient, and the cutting efficiency is increased by 1.2-1.5 times. The large fixed jaws, combined with diversified tooth plates, can quickly crush large concrete blocks, ensuring high work efficiency, low noise, and minimal vibration.
Low Vibration
Low Noise
High Efficiency

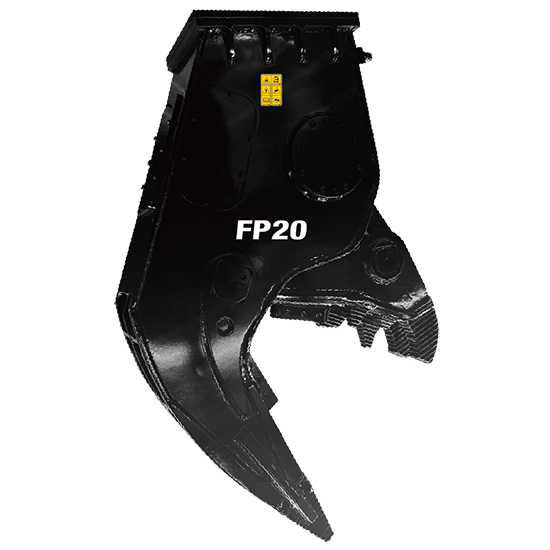

Specifications | Unit | FP15 | FP20 | FP30 | |||
Single Body Type | Mounting Cap Type | Single Body Type | Mounting Cap Type | Single Body Type | Mounting Cap Type | ||
Maximum Opening | mm | 750 | 750 | 850 | 850 | 1150 | 1150 |
Cutting Force (Average) | kN | 1650 | 2330 | 2870 | |||
Breaking Force (At the end) | kN | 550 | 880 | 1150 | |||
Operating Pressure | kg/cm² | 200-300 | 300-350 | 300-350 | |||
Oil Flow | L/min | 140-240 | 180-240 | 200-250 | |||
Suitable Carriers | ton | 11-17 | 18-27 | 28-45 | |||
Rotation | Fixed Type | ||||||
