Eddie Precision Rippers

180~750mm

Center Length Range
140~650mm

Arm Inner Width Range
4~100t

Suitable Carriers

View Complete Details

SEND EMAIL

Complete Details

GET LATEST PRICE

QUICK INQUIRY

Overview
Specifications

Overview

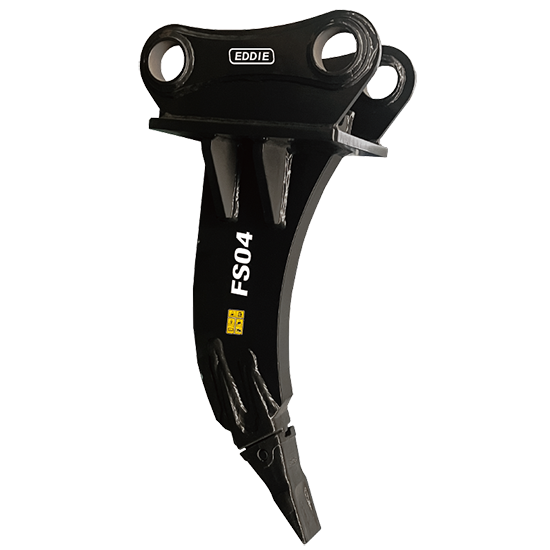

With strong ripping capabilities, it easily works on sections that need loosening. Facilitating the separation of soil and rock reduces ripping resistance. It can be conveniently disassembled and replaced, effectively protecting the main body of the rippers and extending their lifespan.

High Efficiency

Strong Ripping Capabilities

Specifications

Specifications	Unit	FS02	FS04	FS06	FS08	FS10	FS12	FS14
Suitable Carriers	ton	4-6	5-8	9-16	17-23	24-35	36-50	100
Arm Inner Width Range	ton	4-6	5-8	9-16	17-23	24-35	36-50	100
Center Length Rang	mm	140-190	170-230	200-280	260-360	340-420	340-550	500-650
Mounting Pin Diameter	mm	180-300	240-320	300-470	390-510	480-580	500-650	600-750
Product Height	mm	750	930	1240	1360	1460	1540	2122
Main Plate Thickness	mm	50	60	65	80	80	100	110
Tooth Model		DH55	DH150	D85	D85	4T5502	4T5502	D11

Tips:This product has a non-vibration function.
