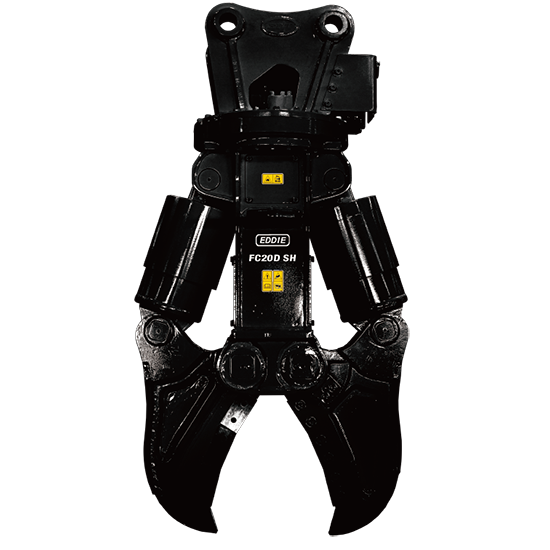

The SH demolition shears with SHear-Type Jaws are primarily used for dismantling large steel structural components in buildings (such as scrapped trucks, oil tanks, or pressure vessels, steel structure workshops, etc.). Compared with scrap shears, demolition shears tend to have a larger opening and deeper cutting, providing greater cutting force. They are suitable for the dismantling of large steel structures, offering a wide range of adaptability and high efficiency.
Flexible and Convenient
High Intensity
High Flow Rate
Specifications | Unit | FC08D SH | FC15D SH | FC20D SH |
Maximum Opening | mm | 380 | 770 | 900 |
Cutting Force (Center) | kN | 495 | 1550 | 2360 |
Operating Pressure (Cylinder) | kg/cm² | 180-250 | 300-350 | 300-350 |
Oil Flow (Cylinder) | L/min | 50-100 | 140-240 | 180-240 |
Operating Pressure (Motor) | kg/cm² | 60-90 | 120-160 | 120-160 |
Oil Flow (Motor) | L/min | 20-30 | 30-50 | 30-50 |
Suitable Carriers | ton | 6-13 | 17-25 | 26-35 |
Rotation | Hydraulic rotation, freely rotates at any angle up to 360 degrees. | |||
