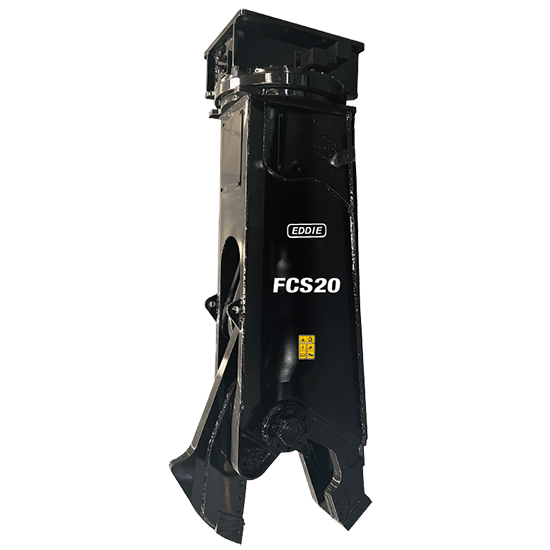

The shorter jaw design and the combination jaw cutting operation of the scrap shears maximize the cutting force at the bite, making it more efficient than the SH demolition shears, featuring double-cylinder hydraulic shears for dismantling scattered high-intensity I-beams, channel steel, H-beams, and other steel components. It is suitable for the processing of metal waste in recycling resources, and the recycling and processing of scrap steel.
High Quality Hydraulic Rotation
High Intensity Support
High Flow Rate with Speed-Up Valve
Specifications | Unit | FCS15 | FCS20 | FCS30 | |
Maximum Opening | mm | 470 | 560 | 730 | |
Cutting Depth | mm | 435 | 495 | 575 | |
Operating Pressure (Closed) | kg/cm² | 200-300 | 300-350 | 300-350 | |
Oil Flow (Closed) | L/min | 140-240 | 180-240 | 180-240 | |
Operating Pressure (Motor) | kg/cm² | 60-90 | 120-160 | 120-160 | |
Oil Flow (Motor) | L/min | 20-30 | 30-50 | 30-50 | |
Cutting Force (Center) | kN | 1470 | 2165 | 2895 | |
Suitable Carriers | Arm | ton | 11-16 | 17-25 | 26-35 |
Boom | ton | 7-15 | 11-16 | 17-25 | |
