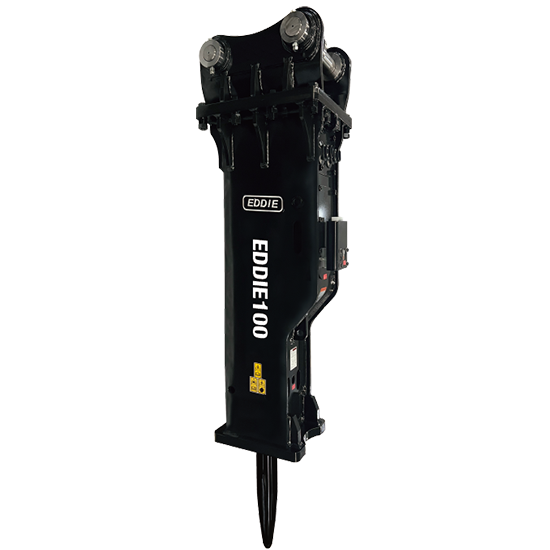

It incorporates all the advantages of top-mounted breakers and features a fully enclosed design. The main powercell and the bracket are assembled using shock-absorbing dampers and pads, resulting in low noise and failure rates. Often used for demolition, tunnel operations, and slag breaking.
| Specifications | Unit | EDDIE100 EDT800 |
| Operating Pressure | kg/cm² psi bar | 150-170 2130-2414 147-166 |
| Oil Flow | l/min gal/min | 80-110 21-29 |
| Impact Frequency | bpm | 350-700 |
| Tool Diameter | mm inch | 100 3.94 |
| Suitable Carriers | ton | 10-15 |
| Valve Type | Inner Valve Type | |
| Accumulator | No |
