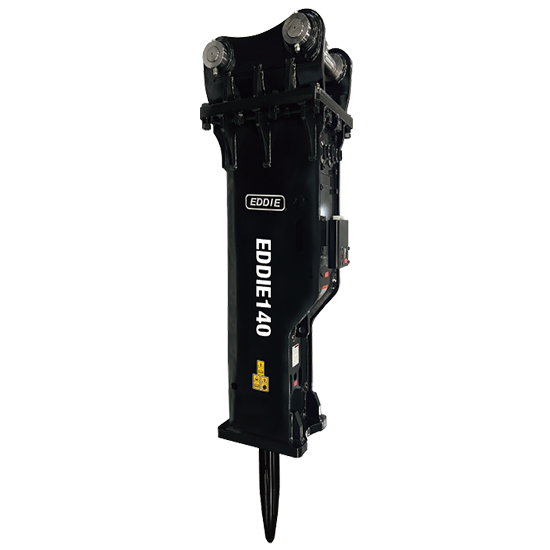

It incorporates all the advantages of top-mounted breakers and features a fully enclosed design. The main powercell and the bracket are assembled using shock-absorbing dampers and pads, resulting in low noise and failure rates. Often used for demolition, tunnel operations, and slag breaking.
| Specifications | Unit | EDDIE140 EDT2200 |
| Operating Pressure | kg/cm² psi bar | 160-180 2272-2556 157-177 |
| Oil Flow | l/min gal/min | 120-180 32-48 |
| Impact Frequency | bpm | 350-550 |
| Tool Diameter | mm inch | 140 5.51 |
| Suitable Carriers | ton | 18-26 |
| Valve Type | Inner Valve Type | |
| Accumulator | No |
