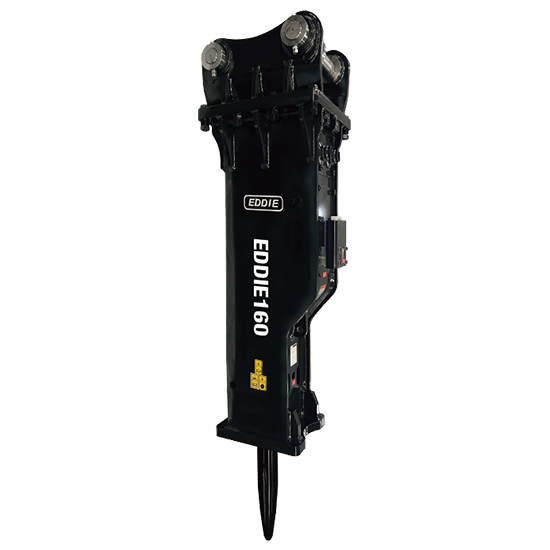

It incorporates all the advantages of top-mounted breakers and features a fully enclosed design. The main powercell and the bracket are assembled using shock-absorbing dampers and pads, resulting in low noise and failure rates. Often used for demolition, tunnel operations, and slag breaking.
| Specifications | EDDIE160 EDT4000 | |
| Operating Pressure | kg/cm² psi bar | 160-180 2272-2556 157-177 |
| Oil Flow | l/min gal/min | 190-240 50-64 |
| Impact Frequency | bpm | 250-380 |
| Tool Diameter | mm inch | 160 6.3 |
| Suitable Carriers | ton | 35-40 |
| Valve Type | Valve Mounted Type | |
| Accumulator | Yes |
