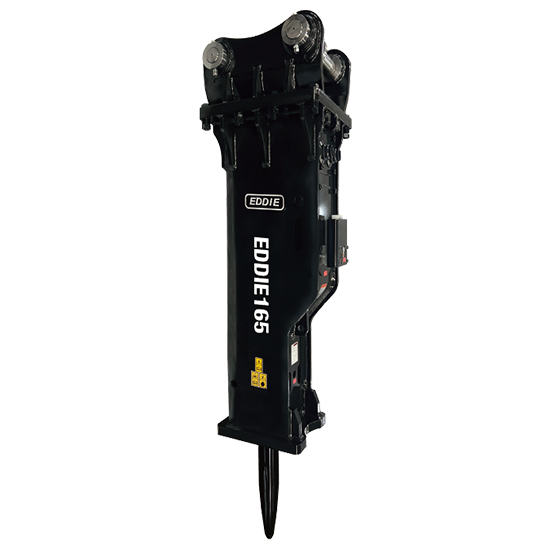

It incorporates all the advantages of top-mounted breakers and features a fully enclosed design. The main powercell and the bracket are assembled using shock-absorbing dampers and pads, resulting in low noise and failure rates. Often used for demolition, tunnel operations, and slag breaking.
| Specifications | Unit | EDDIE165 EDT3500F |
| Operating Pressure | kg/cm² psi bar | 180-200 2556-2840 177-196 |
| Oil Flow | l/min gal/min | 200-250 53-66 |
| Impact Frequency | bpm | 200-380 |
| Tool Diameter | mm inch | 165 6.5 |
| Suitable Carriers | ton | 30-40 |
| Valve Type | Inner Valve Type | |
| Accumulator | Yes |
