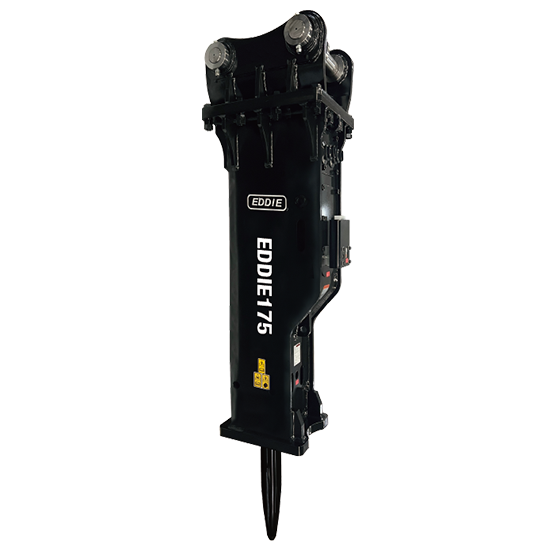

It incorporates all the advantages of top-mounted breakers and features a fully enclosed design. The main powercell and the bracket are assembled using shock-absorbing dampers and pads, resulting in low noise and failure rates. Often used for demolition, tunnel operations, and slag breaking.
| Specifications | Unit | EDDIE175 |
| Operating Pressure | kg/cm² psi bar | 180-200 2556-2840 177-196 |
| Oil Flow | l/min gal/min | 200-260 53-69 |
| Impact Frequency | bpm | 150-300 |
| Tool Diameter | mm inch | 175 6.89 |
| Suitable Carriers | ton | 35-40 |
| Valve Type | Inner Valve Type | |
| Accumulator | Yes |
