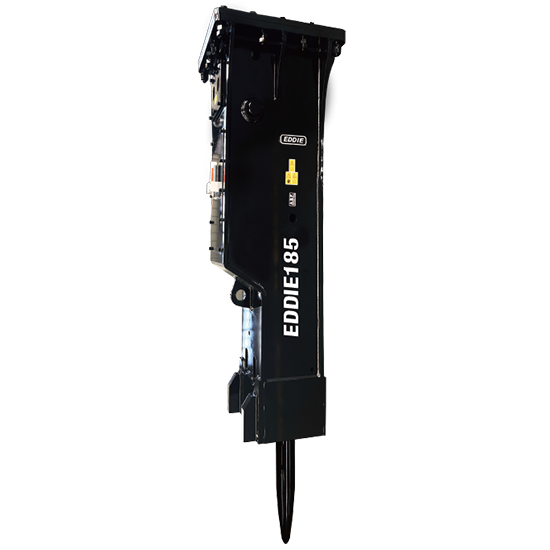

It incorporates all the advantages of top-mounted breakers and features a fully enclosed design. The main powercell and the bracket are assembled using shock-absorbing dampers and pads, resulting in low noise and failure rates. Often used for demolition, tunnel operations, and slag breaking.
| Specifications | Unit | EDDIE185 |
| Operating Pressure | kg/cm² psi bar | 220-270 3127-3837 216-265 |
| Oil Flow | l/min gal/min | 220-270 58-71 |
| Impact Frequency | bpm | 120-200 |
| Tool Diameter | mm inch | 185 7.28 |
| Suitable Carriers | ton | 40-55 |
| Valve Type | Valve Mounted Type | |
| Accumulator | Yes |
