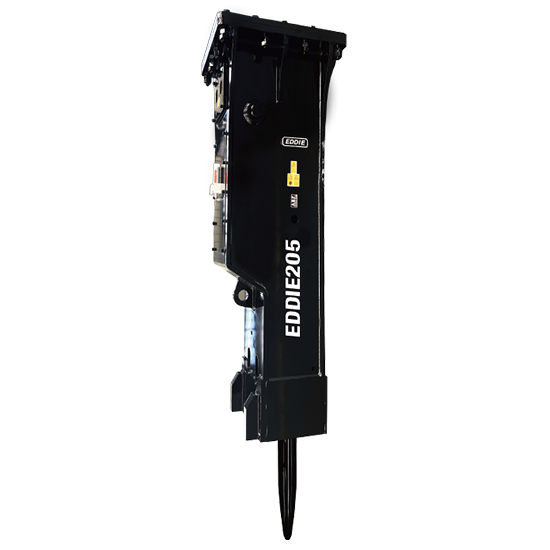

It incorporates all the advantages of top-mounted breakers and features a fully enclosed design. The main powercell and the bracket are assembled using shock-absorbing dampers and pads, resulting in low noise and failure rates. Often used for demolition, tunnel operations, and slag breaking.
| ModeL | Unit | EDDIE205 |
| Operating pressure | kg/cm² psi bar | 270-300 3837-4263 265-294 |
| Hydraulic flow range | l/min gal/min | 290-340 77-90 |
| Impact frequency | bpm | 90-130 |
| Diameter of Tool | mm inch | 205 8.07 |
| Suitable Carrier | ton | 55-65 |
| Valve Type | Valve Mounted Type | |
| Accumulator exists | Yes |
