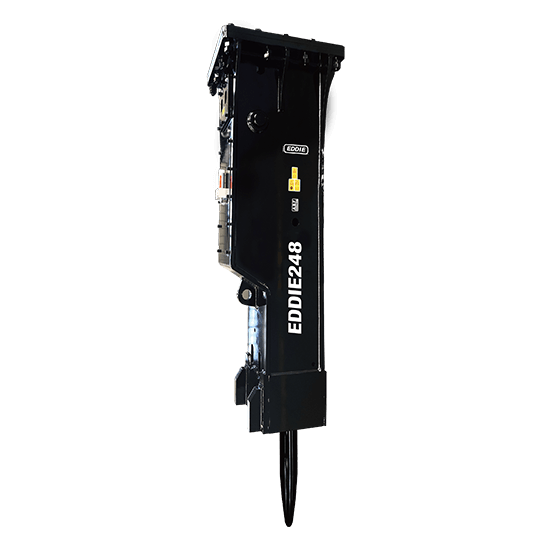

It incorporates all the advantages of top-mounted breakers and features a fully enclosed design. The main powercell and the bracket are assembled using shock-absorbing dampers and pads, resulting in low noise and failure rates. Often used for demolition, tunnel operations, and slag breaking.
| Specifications | Unit | EDDIE248 |
| Operating Pressure | kg/cm² psi bar | 270-300 3837-4263 265-294 |
| Oil Flow | l/min gal/min | 420-500 111-132 |
| Impact Frequency | bpm | 90-130 |
| Tool Diameter | mm inch | 248 9.76 |
| Suitable Carriers | ton | 75-100 |
| Valve Type | Valve Mounted Type | |
| Accumulator | Yes |
