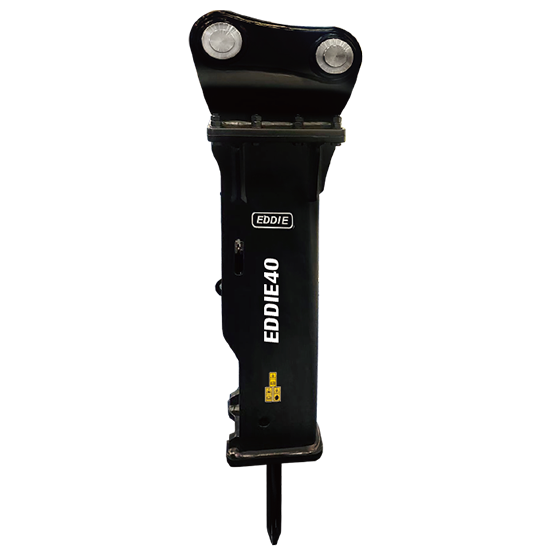

It incorporates all the advantages of top-mounted breakers and features a fully enclosed design. The main powercell and the bracket are assembled using shock-absorbing dampers and pads, resulting in low noise and failure rates. Often used for demolition, tunnel operations, and slag breaking.
| Specifications | Unit | EDDIE40 EDT100 |
| Operating Pressure | kg/cm² psi bar | 90-120 1280-1704 88-117 |
| Oil Flow | l/min gal/min | 15-25 4-7 |
| Impact Frequency | bpm | 800-1400 |
| Tool Diameter | mm inch | 40 1.57 |
| Suitable Carriers | ton | 0.8-2.5 |
| Valve Type | Inner Valve Type | |
| Accumulator | No |
