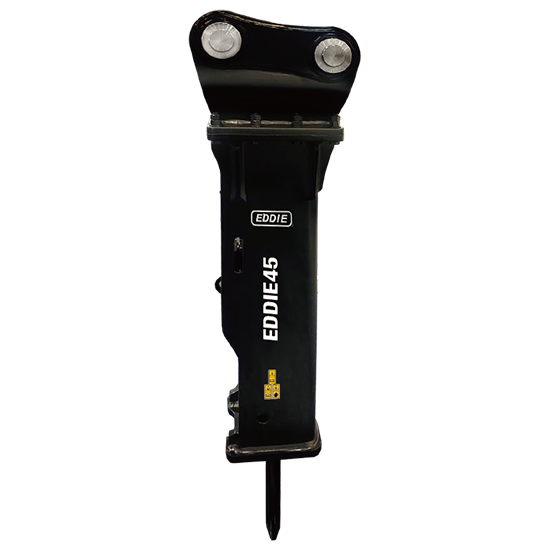

It incorporates all the advantages of top-mounted breakers and features a fully enclosed design. The main powercell and the bracket are assembled using shock-absorbing dampers and pads, resulting in low noise and failure rates. Often used for demolition, tunnel operations, and slag breaking.
| Specifications | Unit | EDDIE45 EDT200 |
| Operating Pressure | kg/cm² psi bar | 90-120 1280-1704 88-117 |
| Oil Flow | l/min gal/min | 20-30 5-8 |
| Impact Frequency | bpm | 700-1200 |
| Tool Diameter | mm inch | 45 1.77 |
| Suitable Carriers | ton | 1.2-3.0 |
| Valve Type | Inner Valve Type | |
| Accumulator | No |
