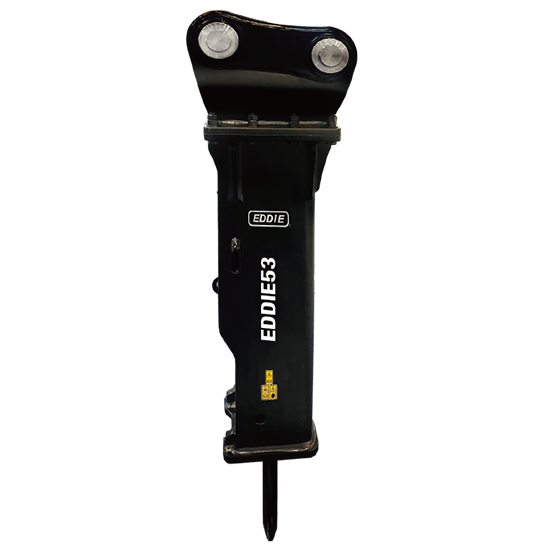

It incorporates all the advantages of top-mounted breakers and features a fully enclosed design. The main powercell and the bracket are assembled using shock-absorbing dampers and pads, resulting in low noise and failure rates. Often used for demolition, tunnel operations, and slag breaking.
| Specifications | Unit | EDDIE53 EDT300 |
| Operating Pressure | kg/cm² psi bar | 90-120 1280-1704 88-117 |
| Oil Flow | l/min gal/min | 25-50 7-13 |
| Impact Frequency | bpm | 600-1100 |
| Tool Diameter | mm inch | 53 2.08 |
| Suitable Carriers | ton | 2.5-4.5 |
| Valve Type | Inner Valve Type | |
| Accumulator | No |
