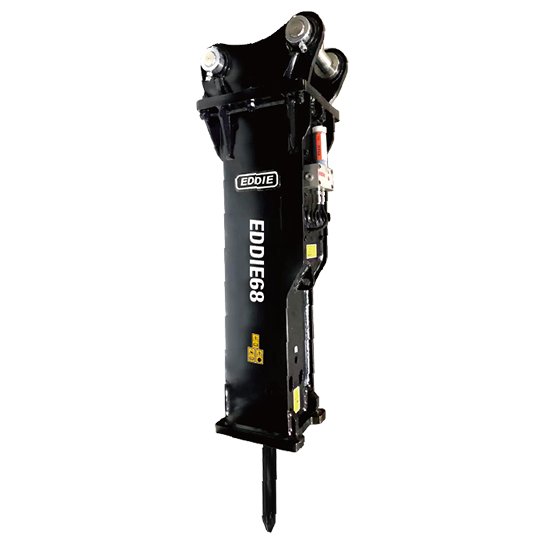

It incorporates all the advantages of top-mounted breakers and features a fully enclosed design. The main powercell and the bracket are assembled using shock-absorbing dampers and pads, resulting in low noise and failure rates. Often used for demolition, tunnel operations, and slag breaking.
| Specifications | Unit | EDDIE68 EDT400 |
| Operating Pressure | kg/cm² psi bar | 110-140 1562-1988 108-137 |
| Oil Flow | l/min gal/min | 40-70 11-19 |
| Impact Frequency | bpm | 500-900 |
| Tool Diameter | mm inch | 68 2.68 |
| Suitable Carriers | ton | 4-7 |
| Valve Type | Inner Valve Type | |
| Accumulator | No |
