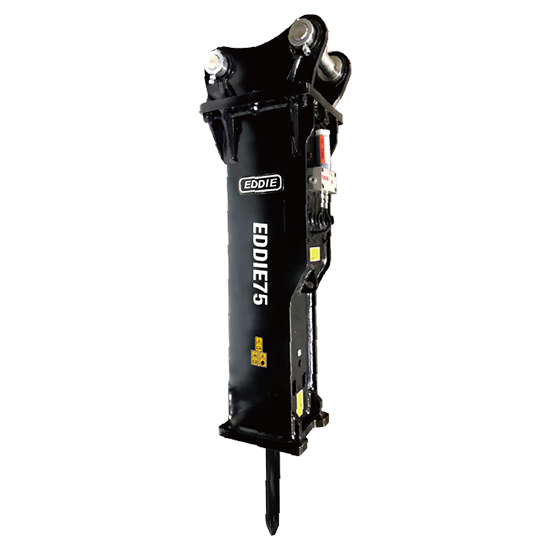

It incorporates all the advantages of top-mounted breakers and features a fully enclosed design. The main powercell and the bracket are assembled using shock-absorbing dampers and pads, resulting in low noise and failure rates. Often used for demolition, tunnel operations, and slag breaking.
| Specifications | Unit | EDDIE75 EDT430 |
| Operating Pressure | kg/cm² psi bar | 120-150 1704-2130 118-147 |
| Oil Flow | l/min gal/min | 50-90 13-24 |
| Impact Frequency | bpm | 400-800 |
| Tool Diameter | mm inch | 75 2.95 |
| Suitable Carriers | ton | 6-9 |
| Valve Type | Inner Valve Type | |
| Accumulator | No |
