Specifications | Unit | P Series | F Series | |

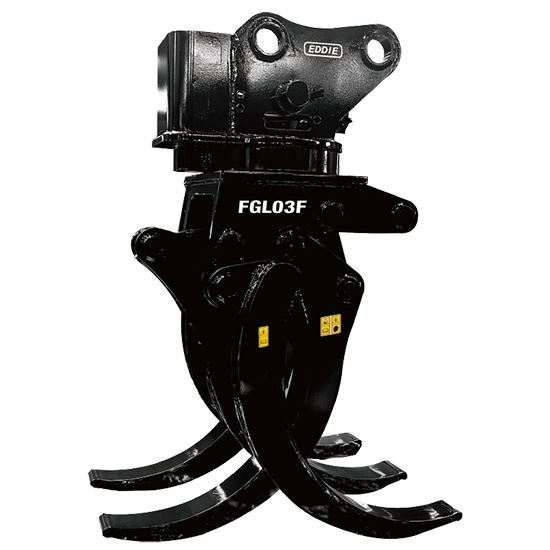

FGL03P | FGL06P | FGL03F | ||
Maximum Opening | mm | 1500 | 1800 | 1250 |
Operating Pressure (Cylinder) | kg/cm² | 150-210 | 160-210 | 150-210 |
Oil Flow (Cylinder) | L/min | 30-50 | 40-60 | 30-50 |
Operating Pressure (Motor) | kg/cm² | 60-90 | 120-160 | 60-90 |
Oil Flow (Motor) | L/min | 20-30 | 30-50 | 20-30 |
Loading Capacity | kg | 1500 | 2000 | 1500 |
Suitable Carriers | ton | 5-11 | 12-16 | 5-11 |
