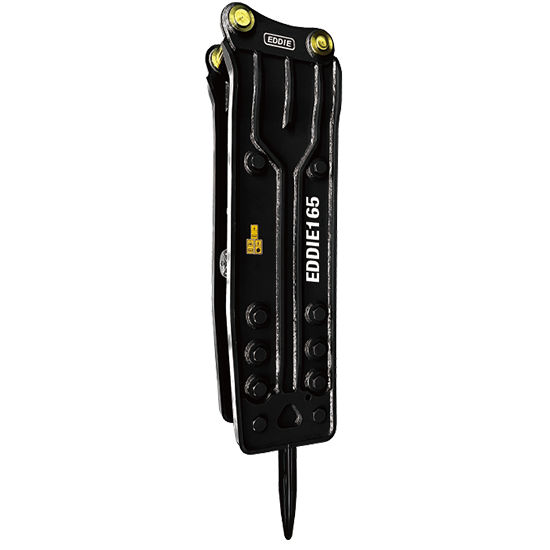

Designed for top mounting, suitable for installation on excavators for breaking operations. With an overall long length and extended breaking distance, it employs single body typed brackets without mounting cap separation that prevents cylinder scratching. Applying a chamfered special grade cylinder helps prevent scratching.
| Specifications | Unit | EDDIE165 EDT3500F |
| Operating Pressure | kg/cm² psi | 180-200 2556-2840 177-196 |
| Oil Flow | l/min gal/min | 200-250 53-66 |
| Impact Frequency | bpm | 200-380 |
| Tool Diameter | mm inch | 165 6.5 |
| Suitable Carriers | ton | 30-40 |
| Valve Type | Inner Valve Type | |
| Accumulator | Yes |
